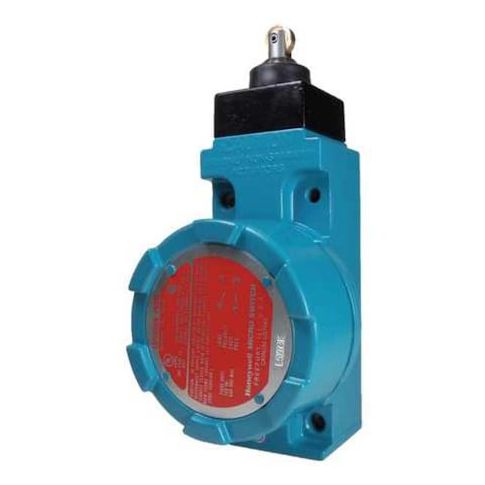

Limit Switch - Hazardous Location, Plunger Roller, 1NC/1NO, LSX Series MPN:LSXD3K
The HONEYWELL Hazardous Location Limit Switch is a reliable and rugged device designed for use in environments meeting specific hazardous location classifications. Its aluminum housing with integral flame paths ensures safe operation in a variety of settings. The switch features a plunger roller actuator and 1NC/1NO contact form, making it suitable for applications such as oil and gas, chemical processing, and mining. Its high AC/DC ratings and operating temperature range from -12°C to 121°C make it a versatile solution for industries requiring a reliable limit switch in hazardous locations.
Top product features:
- Contact Form: 1NC/1NO (SPDT)
- The switch includes an actuator style of plunger with roller at the top location
- Operating Temperature Range: From 10°F to 250°F
Top product applications:
- Oil and Gas Industry: The HONEYWELL Hazardous Location Limit Switch is used in oil and gas applications where hazardous locations are present, such as in refineries, pipelines, and drilling sites.
- Chemical Processing Plants: The switch is suitable for use in chemical processing plants where hazardous materials are handled and processed, meeting the necessary Class I and Class II Division I Group ratings.
- Power Generation and Distribution: The device can be applied in power generation and distribution systems where hazardous locations exist, such as in electrical substations, power plants, and transmission lines.
The HONEYWELL Hazardous Location Limit Switch, Plunger, Roller, 1NC/1NO is a MICRO SWITCH LSX Series device rated for operation in environments meeting the specified hazardous location classifications. It features an aluminum housing with integral flame paths as per product specifications. The switch includes an actuator style of plunger with roller at the top location.
Key Features:
- - Contact Form: 1NC/1NO (SPDT)
- - AC/DC Ratings: 10A at 600VAC
- 10A at 250VDC
- - Actuator Style: Plunger, Roller
- Actuator Length: 2.7 in
- Top-mounted
- - Body Dimensions: Height 4.75 in, Width 2.0 in, Depth 2.44 in
- - Material: Aluminum body
- Non plug-in configuration
- - Mounting: Surface mount with two diagonal holes (0.20 in diameter), spacing of 2.34 x 1.16 in
- - NEMA Enclosure Ratings: Types 1, 3, 4, 6, and13
- - Certifications: Class I Division I Groups B,C,D
- Class II Division I Groups E,F,G
- CSA and UL listed
- - Electrical Connection: Screw terminals
- Wiring entry size is 1/2"-14 NPT
- - Operating Temperature Range: From10°F to250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 71.00
- Package Width: 3.40
- Package Height: 3.30
- Package Weight: 18.30
