Non-Contact Safety Switch - FF6 Series, IP67, Reed, M12 Quick Disconnect MPN:FF6-11-AC-03
The Honeywell FF6 Non-Contact Safety Switch is a reliable and efficient solution for machine guarding applications, ensuring safe operation and reducing downtime. This rugged IP67-rated switch features a reed switch mechanism with 1 normally open and 1 normally closed contact form, supporting both AC and DC ratings. With a M12 quick disconnect capability and pre-cabled design, installation is simplified. The switch is suitable for use in various industries, including manufacturing, automotive, and food processing. Its compact design and robust construction make it an ideal choice for applications where space is limited and reliability is paramount.
Top product features:
- M12 quick disconnect capability
- Reed switch mechanism with 1 normally open (NO) and 1 normally closed (NC) contact form
- IP67 sealed against dust and water ingress
Top product applications:
- Machine Guarding Applications
- Machine Guarding Applications
- Automated Material Handling Systems

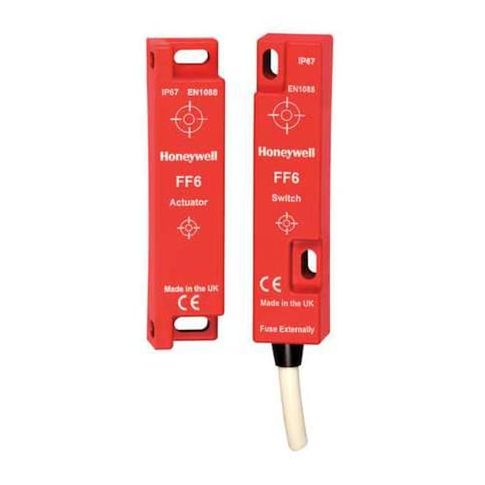

Honeywell FF6 magnetically actuated interlock switch | suitable for use in machine guarding applications This model features a rectangular ABS body and includes both the switch and actuator, which are rated to IP67 per manufacturer specifications. The unit operates using a reed switch mechanism with 1 normally open (NO) and 1 normally closed (NC) contact form, supporting both AC and DC ratings. It comes pre-cabled with a cable length of 9.84 ft and offers M12 quick disconnect capability.
Key Features:
- - Contact Ratings: 2 A @ 230 V AC
- 1 A @ 24 V DC
- - Body Material: Red ABS resin filled
- - Dimensions: Overall depth/width/height of 0.75 in x 0.75 in x 3.25 in
- - Sensing Distances: Off sensing distance up to 1.18 in
- on sensing distance up to 0.4 in
- - Operating Temperature Range: -13°F to +131°F
- - Protection Rating: IP67 sealed against dust and water ingress
- - Termination Type: Pre-cabled, M12 quick disconnect
- - Standards: CE, UL EN1088
Additional Information
- Country of Origin: GB
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 6.50
- Package Height: 0.90
- Package Weight: 0.70
