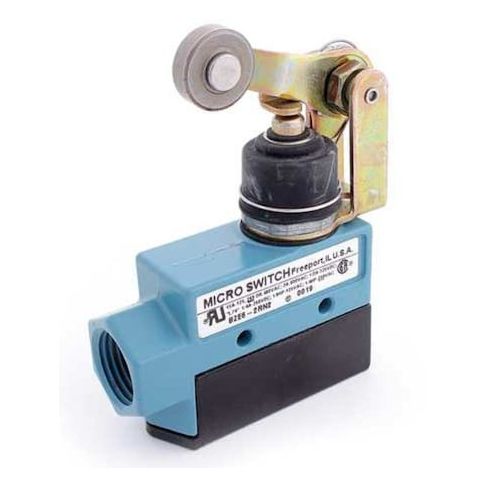

Limit Switch - Compact, SPDT, Roller Lever, Zinc Die Cast, IP66 Rated MPN:BZE6-2RN2
The Honeywell Limit Switch is a versatile and reliable solution for a wide range of applications, including industrial automation, HVAC, and outdoor equipment control. Its compact design and robust construction make it suitable for use in limited spaces, while its IP66 rating ensures protection against dust and water. With its SPDT contact form and durable roller lever actuator, this limit switch provides reliable switching performance in harsh environments. Its flexibility and reliability make it an ideal choice for applications where precision and durability are critical, such as in manufacturing, construction, and outdoor equipment control.
Top product features:
- The Honeywell Limit Switch features a horizontal roller lever actuator with a boot seal.
- The unit incorporates a single pole double throw (SPDT) contact form with both normally closed (NC) and normally open (NO) contacts.
- The switch has a differential travel of 0.01 in, pretravel of 0.19 in, and overtravel of 0.22 in.
Top product applications:
- Machine Automation
- Industrial Control Panels
- Conveyor Systems
The Honeywell Limit Switch is a general purpose, miniature limit switch suitable for indoor and outdoor environments as specified by the product’s environmental ratings. It features a horizontal roller lever actuator with a boot seal per manufacturer specification, housed in a zinc die cast body with electrostatic epoxy coating applied to the zinc die cast body. The compact design has dimensions that may be compatible with installations in limited spaces (see specifications), and the unit incorporates a single pole double throw (SPDT) contact form with both normally closed (NC) and normally open (NO) contacts.
Key Features:
- - Contact Ratings: 15A at 600V AC
- 2A at 250V DC
- - Actuator Style: Plunger, horizontal roller lever
- boot sealed
- - Body Dimensions: Height 1.75 in, Width 3.04 in, Depth 1.0 in
- - Mounting: Surface mount with two mounting holes (0.22 in diameter), spaced 1.00 in apart horizontally
- - Electrical Connection: Screw terminals
- wiring entry via 1/2 in NPT
- - Operating Force: Minimum 10 ozf to maximum 20 ozf
- - Travel Parameters: Differential travel of 0.01 in
- pretravel of 0.19 in
- overtravel of 0.22 in
- - Roller Specifications: Steel material, diameter of 0.75 in, width of 0.25 in
- - Environmental Ratings: IP66 ingress protection
- operating temperature range from -25°F to +160°F
- - Standards Certifications: CSA and UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.30
- Package Height: 5.90
- Package Weight: 0.80
