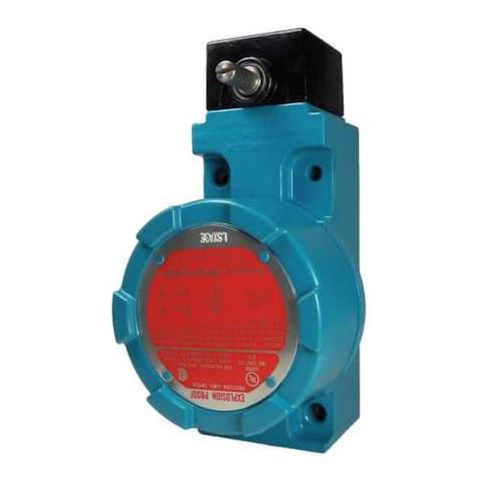

Limit Switch - LSX Series, Hazardous Location, SPDT, 10A, Rotary Head MPN:LSXA4K
Free Shipping
In Stock
The Honeywell LSX Hazardous Location Limit Switch is designed for use in classified atmospheres, providing reliable operation in extreme conditions. This rotary head switch offers momentary action and features a compact aluminum housing with integral flame paths, ensuring safe and efficient performance. Suitable for surface mounting, it's ideal for applications in hazardous locations, such as oil and gas refineries, chemical plants, and other industries where safety is paramount. Its rugged construction and NEMA enclosure ratings make it a reliable choice for harsh environments, providing a high level of protection against electrical shock and environmental factors.
Top product features:
- Operates in classified atmospheres with an aluminum housing featuring integral flame paths per product specifications.
- Offers momentary action with side actuator location.
- Utilizes screw terminals for electrical connection.
Top product applications:
- Gas Processing Plants
- Oil Refineries
- Chemical Plants
The Honeywell LSX Hazardous Location Limit Switch is rated for operation in classified atmospheres, featuring an aluminum housing with integral flame paths per product specifications. This rotary head switch does not include a lever or actuator and is suitable for surface mounting. It offers momentary action with side actuator location and utilizes screw terminals for electrical connection.
Key features:
- - Contact configuration: 1NC/1NO (SPDT)
- - AC rating: 10A at 600V
- DC rating: 10A at 250V
- - Rotary head style, no lever included
- - Body dimensions: 4.75 in height x 2.00 in width x 2.44 in depth
- - Operating temperature range: 10°F to 250°F
- - Mounting style: Surface, two-hole diagonal pattern (0.20 in diameter holes)
- - NEMA enclosure ratings: Types 1, 3, 4, 6, 7, and13
- - Certifications: Class I Division I Groups B,C,D
- Class II Division I Groups E,F,G
- CSA and UL standards compliant
- - Electrical connection via screw terminals with a wiring entry of 3/4 in NPT
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 11.80
- Package Height: 12.60
- Package Weight: 20.90
