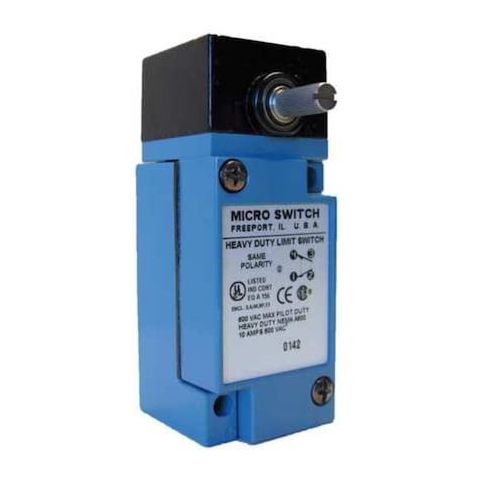

Limit Switch - Heavy Duty, Rotary Head, SPDT, Zinc Die Cast, IP67 Rated MPN:LSN1A
The Honeywell Heavy Duty Limit Switch is a reliable and durable solution for industrial and commercial applications requiring maintained action. Suitable for use in a variety of settings, including manufacturing, material handling, and HVAC systems, this rotary-style limit switch features a side-mounted rotary head without a lever and a plug-in zinc die cast body with screw terminal connections. With a wide range of electrical ratings and resistance to corrosion, this switch offers flexibility and reliability in harsh environments, making it an ideal choice for applications where uptime and performance are critical.
Top product features:
- Rotary head actuator style with no lever
- Single-pole double-throw (SPDT) contacts with 1 normally closed and 1 normally open configuration
- Maintained CCW/CW operation with total travel of 80°, differential travel of 40°, and pretravel max of 65°
Top product applications:
- Industrial machinery control systems
- Commercial automation systems
- Heavy equipment control systems
The Honeywell Heavy Duty Limit Switch, part of the LSN Series, is a rotary-style limit switch suitable for use in industrial and commercial applications where maintained action is specified. This model features a side-mounted rotary head without a lever and utilizes a plug-in zinc die cast body with screw terminal connections. The unit offers single-pole double-throw (SPDT) contacts with 1 normally closed (NC) and 1 normally open (NO) configuration, supporting both AC and DC ratings up to 10A at 600V AC or 250V DC. Its housing constructed to comply with applicable NEMA enclosure standards and rated IP65, IP66, and IP67 for ingress protection.
Key Features:
- - Actuator Style: Rotary head, no lever
- side location
- - Contact Form: SPDT (1NC/1NO)
- - Electrical Ratings: 10A at 600VAC / 10A at 250VDC
- - Body Material & Size: Zinc die cast
- miniature style
- overall dimensions—4.2 in height x 1.62 in width x 2.44 in depth
- - Mounting: Surface mount with two diagonal holes (0.20 in diameter), spacing of 2.34 in x 1.16 in center-to-center
- - Movement & Travel: Maintained CCW/CW operation
- total travel of 80°, differential travel of 40°, pretravel max of 65°, overtravel min of 20°
- - Operating Temperature Range: From -30°F to +250°F
- - Ingress Protection/NEMA Ratings: IP65/IP66/IP67
- NEMA types—1,3,4,4X,6,6P,12,13
- - Resistance Properties: Constructed from materials specified to provide resistance to corrosion per manufacturer specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.10
- Package Height: 2.30
- Package Weight: 1.62
