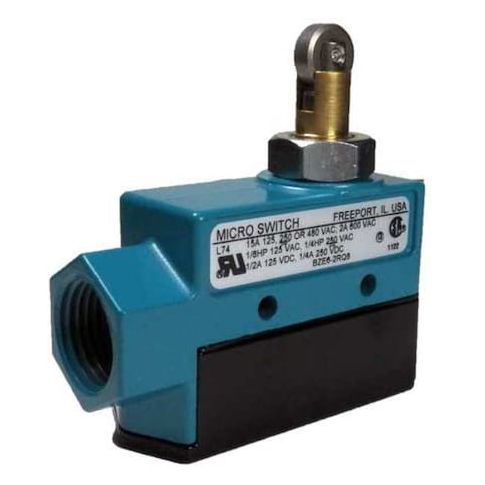

Limit Switch - BZE6, Roller Plunger, SPDT, 15A 600V, IP66, Surface Mount MPN:BZE6-2RQ8
The Honeywell BZE6 Series Limit Switch is a reliable and compact solution for a wide range of applications, including industrial automation, HVAC, and power generation. Its roller plunger actuator and surface-mount design make it suitable for indoor and outdoor environments, providing a high level of protection against dust and water. With a robust zinc die-cast body and SPDT contacts, this switch offers a high level of reliability and durability. Its compact size and versatile mounting options make it an ideal choice for space-constrained installations, while its high IP66 rating ensures reliable operation in harsh conditions.
Top product features:
- The switch incorporates a zinc die-cast miniature body with surface mounting, offering compact installation where space is limited.
- It uses the Honeywell MICRO SWITCH BZ snap-spring mechanism and contains single-pole double-throw (SPDT) contacts: one normally closed (NC), one normally open (NO).
- The switch features a roller plunger actuator that provides a smooth and reliable operation.
Top product applications:
- Machine Tool Applications
- Industrial Automation and Control Systems
- Material Handling and Conveying Systems
Honeywell’s BZE6 Series Limit Switch features a roller plunger actuator and is suitable for installation in indoor and outdoor environments, subject to compliance with specified ratings and protection standards.
The switch incorporates a zinc die-cast miniature body with surface mounting, offering compact installation where space is limited. It uses the Honeywell MICRO SWITCH BZ snap-spring mechanism and contains single-pole double-throw (SPDT) contacts: one normally closed (NC), one normally open (NO).
Key Features:
- - AC Contact Rating: 15A at 600V
- DC Contact Rating: 2A at 250V
- - Actuator Style: Plunger, Roller
- Actuator Length: 1.2 in
- Roller Diameter: 0.5 in (steel)
- - Body Dimensions: Height 1.75 in, Width/Depth 3.04 in x 1 in
- Miniature style
- - Mounting: Surface mount with two horizontal holes spaced at 1.00 in center-to-center
- - Electrical Connection: Screw terminals
- Wiring Entry: 1/2 in NPT
- - Operating Force Range: Minimum 9 ozf to Maximum 13 ozf
- - Travel Parameters: Differential travel of 0.002 in, pretravel of up to .02 in, overtravel of .14 in
- - Temperature Range: -25°F to +160°F
- - Rated IP66, NEMA Type 1 enclosure per manufacturer specifications
- - Certified to applicable UL and CSA standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.40
- Package Height: 3.90
- Package Weight: 0.67
