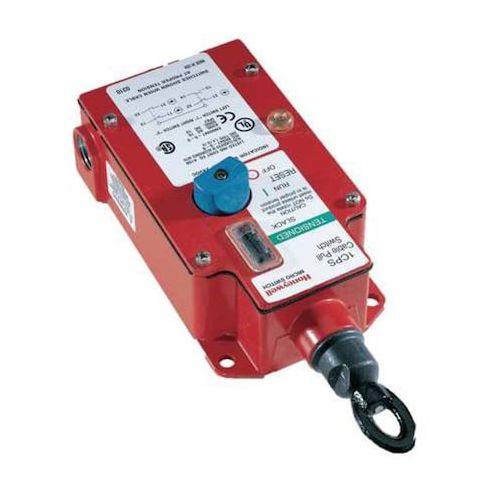

Cable-Pull Safety Switch - 1CPS, Emergency Stop, 250 ft Span, IP67 MPN:1CPSA1A
Free Shipping
In Stock
Protect people and equipment with Honeywell's 1CPS Series Emergency Cable Pull Switch, a reliable emergency stop signaling device for cable spans up to 250 ft. This single-ended, maintained-action device features a zinc die cast case and direct opening contacts that change state with cable pull, slack, or break. The rotary knob reset mechanism allows for manual reset and a 24V DC LED indicator provides visual status. Ideal for applications such as conveyor systems, cranes, and hoists, this switch offers high contact ratings, NEMA ratings, and a wide operating temperature range. Ensure safe operation and meet regulatory requirements with the 1CPS Series.
Top product features:
- Contact Rating: 10A @ 600V AC
- Direct opening contacts change state when the actuating cable is pulled, slackened, or broken
- Rotary knob reset mechanism allows manual reset of the switch following actuation
Top product applications:
- Industrial Automation
- Emergency Stop Signaling Device for Cable Spans up to 250 ft
- Safety Switch for Heavy Machinery and Equipment
Honeywell's 1CPS Series Emergency Cable Pull Switch is a single-ended, maintained-action device intended for use as an emergency stop signaling device along cable spans up to 250 ft. The switch features a zinc die cast case and utilizes direct opening contacts that change state when the actuating cable is pulled, slackened, or broken. A rotary knob reset mechanism allows manual reset of the switch following actuation. The unit includes a 24V DC LED indicator for visual status and supports left or right cable connection.
Key Features:
- - Contact Rating: 10A @ 600V AC
- 2.5A @ 24V DC
- - Contact Form: 1 Normally Open (NO) / 1 Normally Closed (NC), silver alloy contacts
- - Maximum Cable Span: 250 ft
- - Case Material: Zinc die cast with IP67 protection
- NEMA ratings: 1, 12, 13, and 4
- - Operating Temperature Range: -40°F to +176°F
- - Mounting Style: Single end
- wiring entry via 1/2 in NPT
- - Reset Mechanism: Rotary knob
- pull force of up to 40 lb required for actuation
- - Indicator Light: Integrated LED at 24V DC
- - Dimensions: Length – 10.62 in
- Width – 3.9 in
- Depth – 2.57 in
- - Standards Compliance: CE, CSA, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.20
- Package Width: 9.00
- Package Height: 9.00
- Package Weight: 4.50
