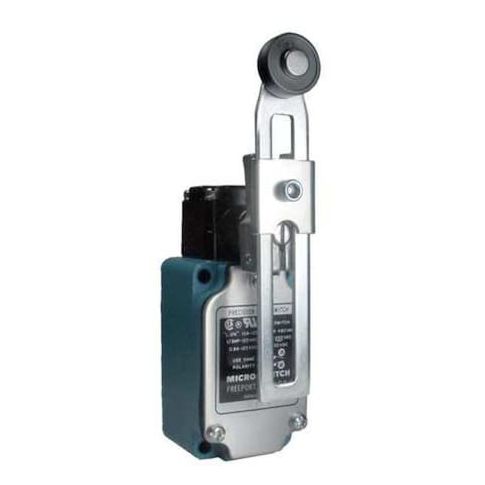

Limit Switch - Rotary Roller Lever, Die Cast Zinc, 10A, NEMA Rated MPN:1LS58
The Honeywell MICRO SWITCH Compact LS Limit Switch Series is a reliable and compact solution for applications where space is limited. Featuring a non-plug-in, die-cast zinc body with a side rotary roller lever actuator, this limit switch provides a durable and adjustable operator configuration. Suitable for use in a variety of environments, including industrial and commercial settings, this switch offers a 10A contact rating at 480V AC and meets NEMA rating standards. Ideal for applications such as conveyor systems, machinery, and equipment, this limit switch ensures reliable operation and extended lifespan, making it a valuable addition to any facility.
Top product features:
- Die-cast zinc body with a side rotary roller lever actuator
- 1 normally closed (NC) and 1 normally open (NO) contact configuration
- Spring return mechanism with adjustable operator configuration
Top product applications:
- Machine Automation
- Motor Control
- Industrial Automation
Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified. This limit switch features a non plug-in, die-cast zinc body with a side rotary roller lever actuator and includes 1 normally closed (NC) and 1 normally open (NO) contact configuration. The unit incorporates a spring return mechanism and adjustable operator configuration.
Key features:
- - Contact rating: 10A at 480V AC
- - Actuator style: Rotary, roller lever
- actuator length from 1.20" to 3.50"
- - Body construction: Die cast zinc
- miniature style
- - Electrical connection: Screw terminals with threaded entry (1/2 in NPT)
- - Mounting: Surface mount with four mounting holes (0.19 in diameter), rectangular pattern
- - Operating temperature range: -20°F to 160°F (-29°C to 71°C)
- - Mechanical travel parameters: Pretravel—5°, differential travel—4°, overtravel—30°
- - Roller dimensions/material: Diameter—0.75", width—0.25", nylon material
- - Enclosure ratings: NEMA types 1, 3, 4, 6, and 13
- - Standards compliance: CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 2.20
- Package Weight: 1.13
