Cable-Pull Safety Switch - 2CPS Series, Dual End, 500 ft Span, IP67 MPN:2CPSA2A1A
Cable-Pull Safety Switch - 2CPS Series, Dual End, 500 ft Span, IP67

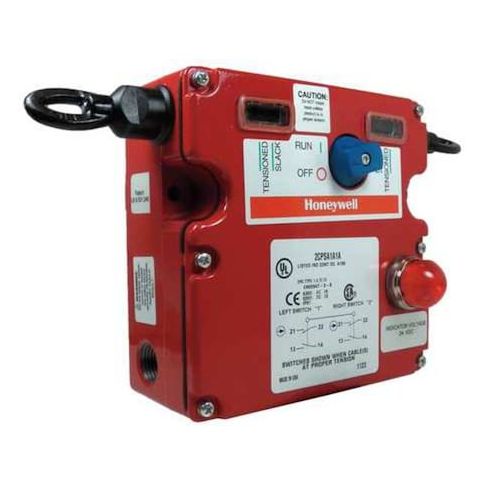

Honeywell's 2CPS Series Emergency Cable Pull Switch is a double-ended, maintained-action switch rated for operation with cable spans up to 500 ft. It includes a latching mechanism that changes switch state when the actuating cable is pulled, slackened, or broken. The unit features a zinc die cast case and includes a rotary knob reset mechanism. Switch contacts utilize snap-action operation and are manually resettable. An integrated 24V DC LED cluster serves as an indicator.
Key features include:
- - Contact configuration: 2NO/2NC silver alloy contacts
- - Maximum cable span: 500 ft
- dual cable switching ability
- - AC contact rating: 0.05 A @ 250 V
- DC contact rating: 2.5 A @ 24 V
- thermal current/amperage: 10 A
- - Operating force: 3 to 5 lb
- pull force: up to 40 lb
- - Case material: Zinc die cast with IP67 and NEMA ratings (1,12,13,4)
- - Mounting style: Double end
- wiring entry size: 1/2 in NPT
- - Indicator type: Integrated LED cluster (24V DC)
- - Dimensions (L x W x D): 12.75 in x 12.75 in x 3.66 in
- - Operating temperature range from -40°F to +176°F
- - Standards met: CE, CSA, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 122.00
- Package Width: 12.20
- Package Height: 4.50
- Package Weight: 84.50
Product info last updated on February 18, 2026 10:51am UTC
Category: Industrial Electrical Controls and Automation
