Safety Interlock Switch 2NC/1NO Magnetically Actuated MPN:FF5-21-DC-03
Safety Interlock Switch 2NC/1NO Magnetically Actuated

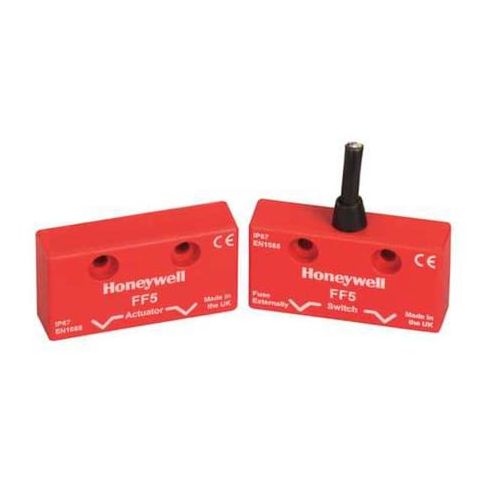

The Honeywell FF5 Magnetically Actuated Safety Interlock Switch is a reliable and efficient solution for applications requiring high-level safety and control. This compact switch is perfect for use in industrial, medical, and commercial settings where safety interlocks are critical. With its 1NO/2NC contact form and 0.3A @ 24V DC contact rating, it provides secure and precise control. Its IP67 rating ensures durability in harsh environments. Easy to install and pre-cabled for convenience, this switch is ideal for applications such as machinery guarding, access control, and medical equipment safety. Its magnetically actuated design makes it easy to integrate into existing systems.
Top product features:
- Magnetically actuated design allows for easy operation and activation
- Switch has two normally closed (2NC) and one normally open (1NO) contacts for versatile circuit control
- Operates over a wide temperature range of 14 to 131 degrees Fahrenheit
Top product applications:
- Machine Guarding: The Safety Interlock Switch can be used to prevent unauthorized access to hazardous machinery by requiring an operator to engage the switch before operating the machine.
- Emergency Shut-Off Systems: The switch can be used to quickly shut off power to a system in case of an emergency, providing a safe and efficient way to prevent further damage or injury.
- Automated Equipment: The Safety Interlock Switch can be used to control automated equipment, such as robotic arms or conveyor systems, by requiring a specific action to be taken before the equipment can operate.
Magnetically Actuated Safety Interlock Switch, Series FF5, Switch Width 0.55 in, Switch Height 1.1 in, Switch Depth 2.04 in, Contact Form 1NO/2NC, AC Contact Rating Not Applicable, DC Contact Rating 0.3 A @ 24 V, Operating Temp. Range 14 Degrees to 131 Degrees F, Termination Type Pre-Cabled, Cable Length 9.8 ft, IP Rating IP67, Actuator Width 0.53 in, Actuator Height 1.14 in, Actuator Depth 2.08 in, On Sensing Distance 0.24 in, Off Sensing Distance 0.67 in, Body Material ABS
Additional Information
- Country of Origin: GB
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.35
Product info last updated on February 11, 2026 2:52am UTC
Category: Industrial Electrical Controls and Automation
