Limit Switch - Heavy Duty, Rotary, DPDT, 10A 600VAC/250VDC, NEMA/IP67 MPN:LSM7N

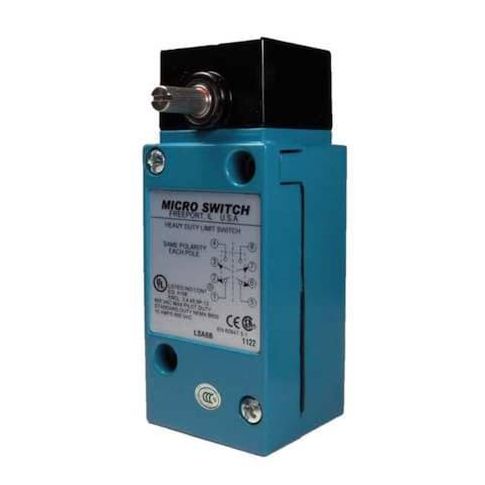

The Honeywell Heavy Duty Limit Switch from the LSM Series is a rotary-style, momentary-action switch suitable for surface mounting applications. It features a zinc die cast body per product specifications with no lever actuator included and utilizes screw terminals for electrical connection. The unit provides 2NC/2NO (DPDT) contact configuration and supports both AC (10A at 600V) and DC (10A at 250V) ratings. Its housing is constructed to comply with specified NEMA enclosure standards (1, 3, 4, 4X, 6, 6P, 12, and 13) and IP65/66/67 ingress protection ratings.

Key Features:

• - Rotary head actuator style
• no lever included
• - Contact form: Double pole double throw (2NC/2NO)
• - Electrical rating: Up to 10A at 600VAC / up to 10A at 250VDC
• - Momentary action with CCW/Center Neutral/CW movement
• - Surface mount design with two diagonal mounting holes (0.20 in diameter)
• - Body dimensions: Height – up to 4.69 in
• Width –1.88 in
• Depth –1.79 in
• - Operating temperature range: Minimum of 10°F to maximum of 250°F
• - Zinc die cast body per product specifications
• - Screw terminal wiring entry
• accepts standard conduit via a threaded port (1/2 in NPT)
• - Meets CCC, CE, CSA, UL standards
