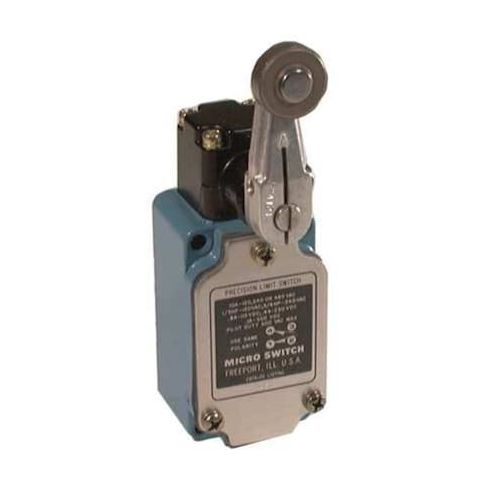

Limit Switch - Rotary Roller Lever, SPDT, Die Cast Zinc, IP67, 10A 480V MPN:1LS19
Compact and reliable, Honeywell's MICRO SWITCH Compact LS Limit Switch Series is ideal for use in applications where space is limited. The rotary roller lever actuator and non plug-in die-cast zinc body construction provide a durable and long-lasting solution. With a rating of 10A at 480V AC, this limit switch is suitable for a wide range of industrial applications, including robotics, automation, and machinery. Its IP67 rating and NEMA compliance ensure reliable operation in harsh environments, making it a great choice for use in manufacturing, oil and gas, and other industries where reliability is critical.
Top product features:
- Rotary roller lever actuator located on the side
- SPDT (1NC/1NO) contact form
- IP67 rated enclosure that complies with NEMA types 1,3,4,6,13
Top product applications:
- Industrial Automation Systems
- Limit switches are used in industrial automation systems to monitor and control the position of machinery, such as conveyor belts, pumps, and valves.
- Material Handling Equipment
Honeywell's MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified by the product dimensions and mounting configuration. This limit switch features a rotary roller lever actuator located on the side, with a non plug-in die-cast zinc body construction and surface mounting configuration. The device features SPDT (1NC/1NO) contact form
- rated for operation at up to 10A at 480V AC as per manufacturer specifications.
Key Features:
- - Actuator Style: Rotary, Roller Lever
- Actuator Length: 1.5 in
- Side location
- - Contact Form: SPDT (1NC/1NO)
- AC Rating: 10A at 480V
- - Body Material: Die Cast Zinc
- Miniature body style
- Non plug-in configuration
- - Mounting: Surface mount with four 0.19 in diameter holes (2.31 x 1.19 in spacing)
- - Electrical Connection: Screw terminals via threaded entry (1/2 in NPT)
- - Travel Parameters: Pretravel – 5°, Differential travel – 4°, Overtravel – 30°
- - Operating Force/Torque: Requires up to 3 lb force or maximum torque of 4.5 in-lb
- - Temperature Range: -20°F to +160°F
- enclosure is rated IP67 and complies with NEMA types 1,3,4,6,13 according to manufacturer testing standards
- - Roller Dimensions & Material: Steel roller, diameter .75 in, width .25 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.30
- Package Height: 3.90
- Package Weight: 1.05
