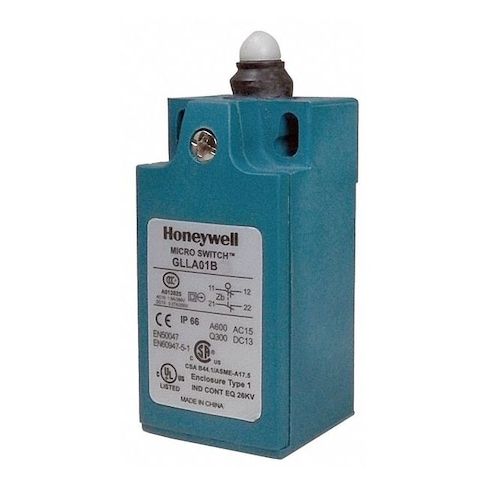

Limit Switch - GLL Series, SPDT, Plunger Actuator, 10A, IP65 Rated MPN:GLLA01B
The Honeywell MICRO SWITCH GLL Series limit switch is a versatile and reliable solution for a variety of applications, including industrial automation, robotics, and process control. With its compact plastic housing and specified body dimensions, this general-purpose limit switch is compatible with linear movement and incorporates direct opening action on the NC circuit. The device features 10A contact ratings at 300V AC and 250V DC, making it suitable for a range of applications. Its IP65 rated enclosure ensures protection against dust and water, and its surface-mount design with screw terminals provides easy installation and maintenance.
Top product features:
- Double insulated, compact plastic housing provides a durable and reliable structure for the limit switch.
- SPDT configuration with both NC and NO contacts allows for flexible circuit control and switching options.
- IP65 rated enclosure protects the switch from harsh environmental conditions, ensuring reliable operation in demanding applications.
Top product applications:
- Machine Guarding
- Positioning and Stopping
- Position Sensing
Honeywell MICRO SWITCH GLL Series limit switch features a double insulated, compact plastic housing with specified body dimensions. This general purpose limit switch includes both NC and NO contacts in an SPDT configuration. The device is compatible with linear movement
- incorporates direct opening action on the NC circuit.
Key Features:
- - Contact Ratings: 10A at 300V AC
- 10A at 250V DC
- - Actuator Style: Plunger, top-mounted
- actuator length 1.48 in
- - Body Dimensions: Height 2.44 in, width 1.2 in, depth 1.22 in
- - Mounting: Surface mount with two horizontal holes (0.16–0.17 in diameter), spacing of 0.87 in center-to-center
- - Electrical Connection: Screw terminals
- wiring entry via 1/2 in NPT
- - Travel Parameters: Differential travel of 0.06 in, pretravel of 0.11 in, overtravel minimum of 0.118 in
- - Operating Force/Torque: Maximum operating force/torque is 2.22 in-lb
- - Temperature Range: Rated for operation within the temperature range of 14°F to 176°F
- - Protection Ratings & Standards: IP65 rated enclosure
- meets CCC, CE, cULus standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.15
