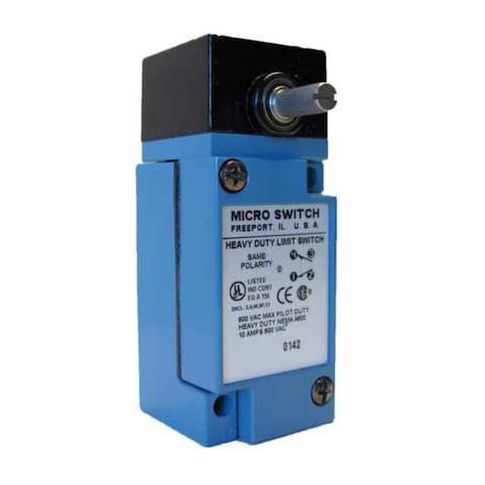

Limit Switch - Heavy Duty, Rotary Head, 10A, SPDT, NEMA/IP67 Rated MPN:LSA1A

The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, side-actuated switch suitable for industrial and commercial applications, per specified ratings. It features a zinc die cast miniature body with plug-in configuration and surface mounting capability. The unit operates momentarily via a rotary head without a lever, supporting detection of rotary head movement in both clockwise (CW) and counterclockwise (CCW) directions, as specified. Electrical connections are made through screw terminals, supporting 1NC/1NO SPDT contact form rated at 10A up to 600VAC or 250VDC.

Key Features:

• - Contact Ratings: 10A at 600VAC / 10A at 250VDC
• - Actuator Style: Rotary head, no lever
• side location
• CW/CCW movement
• - Body Dimensions: Height – 2.95 in
• Width – 1.62 in
• Depth – 1.75 in
• - Mounting: Surface mount with two diagonal holes (0.20 in diameter), spacing of 2.34 x 1.16 in
• - Enclosure meets NEMA types 1,3,4,4X,6,6P,12,and13
• IP65/66/67 ingress protection standards when properly installed according to manufacturer instructions
• - Operating Temperature Range: From 10°F to 250°F
• - Travel Parameters: Differential travel of 5°, pretravel of up to15°, overtravel minimum of60°
• - Construction: Constructed from zinc die cast material with corrosion-resistant characteristics as defined by the manufacturer specifications
• - Wiring Entry Size: Accepts conduit via standard1/2"-14 NPT
