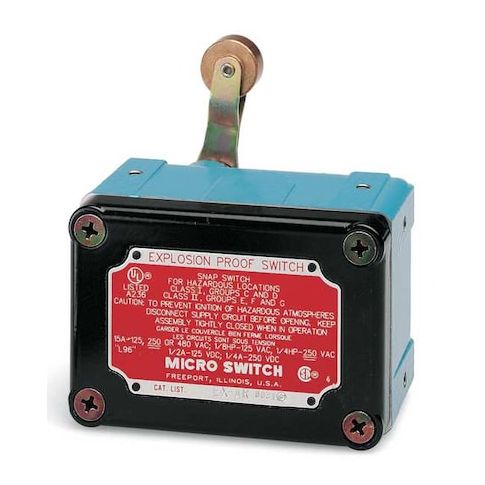

Limit Switch - Explosion Proof, Rotary Roller Lever, SPDT, Aluminum Housing MPN:EX-AR141
Free Shipping
In Stock
The MICRO SWITCH EX Series Explosion Proof Limit Switch from Honeywell is a reliable and versatile solution for applications in hazardous environments. This miniature aluminum housing limit switch features a rotary, roller lever actuator and SPDT contact configuration, making it ideal for use in industrial settings where safety and reliability are paramount. With a wide operating temperature range and certifications for ATEX, IEC Ex, CSA, and UL, this limit switch is suitable for use in Class I and II hazardous locations. Its compact design and surface mount capability make it easy to integrate into existing systems, providing a high level of safety and precision.
Top product features:
- Rotary, roller lever actuator provides a smooth and precise control over the switch's operation.
- Supports SPDT (1NC/1NO) contact configuration for flexible circuit design and troubleshooting.
- Operates in hazardous environments meeting Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G specifications.
Top product applications:
- Oil and Gas Industry: The explosion proof limit switch is used to monitor and control the position of valves and pumps in hazardous locations.
- Aerospace Industry: The miniature size and aluminum housing of the limit switch make it suitable for use in aircraft and spacecraft where space and weight are critical factors.
- Petrochemical Industry: The limit switch is used to detect and control the position of gates and valves in hazardous locations, ensuring safe and reliable operation in the presence of flammable vapors and liquids.
MICRO SWITCH EX Series Explosion Proof Limit Switch from Honeywell features a miniature aluminum housing rated for operation in environments meeting the specified hazardous location classifications. This rotary, roller lever limit switch is equipped with a top-mounted actuator and features SPDT (1NC/1NO) contact configuration. The unit supports surface mounting with two 10-32 threaded holes spaced 2.06 inches apart, and utilizes screw terminals for electrical connection.
Key Features:
- - AC Contact Rating: 15A at 600V
- DC Contact Rating: 0.25A at 250V
- - Actuator Style: Rotary, Roller Lever
- Actuator Length: 1.5 in
- Roller Diameter: 0.75 in (bronze)
- - Body Material/Style: Aluminum, Miniature
- Dimensions (HxWxD): 2.56 x 2.78 x 2.02 in
- - Operating Temperature Range: -40°F to +160°F
- - Mounting Style: Surface mount with two horizontal mounting holes (10-32 thread)
- - Electrical Connection: Screw terminals
- Wiring Entry Size: 1/2"-14 NPT
- - Certifications & Standards: ATEX, IEC Ex, CSA, UL
- Hazardous Location Specification includes Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 3.00
- Package Height: 4.00
- Package Weight: 1.46
