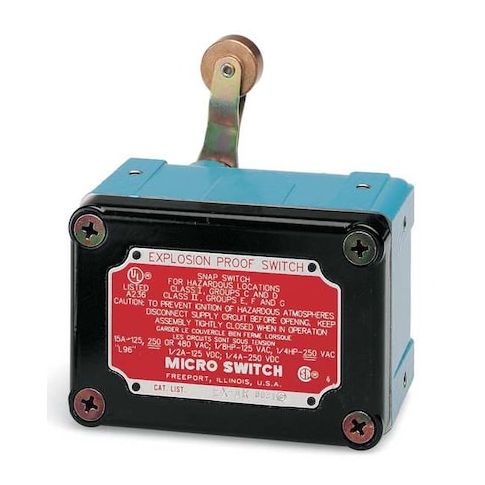

Limit Switch - Explosion Proof, Rotary Roller Lever, SPDT, Aluminum Housing MPN:EX-AR30
The MICRO SWITCH EX Series Explosion Proof Limit Switch from Honeywell is designed for use in hazardous environments, meeting certifications and standards for Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G. Suitable for surface mounting, this compact, miniature switch features a rotary roller lever actuator and screw terminal electrical connections. Its aluminum housing provides durability and resistance to extreme temperatures. Ideal for use in industries such as oil and gas, chemical processing, and manufacturing, this limit switch ensures reliable operation and safe monitoring of equipment in high-risk areas.
Top product features:
- Compact, miniature aluminum housing suitable for installation in hazardous environments
- Rotary roller lever actuator located at the top of the unit for easy operation
- Screw terminal electrical connections for secure and reliable wiring
Top product applications:
- In hazardous industrial environments, this limit switch is used in applications where safety and reliability are critical.
- In oil refineries and chemical plants, the explosion-proof limit switch is used to monitor and control equipment in areas with explosive atmospheres.
- On construction sites and in other outdoor environments, the switch is used to control and monitor equipment in areas with high temperatures and exposure to dust and water.
MICRO SWITCH EX Series Explosion Proof Limit Switches from Honeywell feature a compact, miniature aluminum housing suitable for installation in environments classified as hazardous, per applicable certifications and standards. The switch utilizes a rotary roller lever actuator located at the top of the unit and is equipped with screw terminal electrical connections. It offers a contact configuration of 1NC/1NO (SPDT) and can be surface mounted using two horizontal mounting holes.
Key features:
- - AC Contact Rating: 15A at 600V
- DC Contact Rating: 0.25A at 250V
- - Actuator Style: Rotary, Roller Lever
- Actuator Length: 1.5 in
- Roller Diameter: 0.75 in (bronze)
- - Body Dimensions: Height 2.56 in, Width 2.78 in, Depth 2.02 in
- Body Material: Aluminum
- - Operating Temperature Range: -40°F to 160°F
- - Electrical Connection: Screw Terminals
- Wiring Entry Size: 1/2"-14 NPT
- - Mounting Style: Surface mount with two horizontal mounting holes (10-32 thread), spacing of 2.06 in center-to-center
- - Certifications and Standards: ATEX, IEC Ex, CSA, UL for hazardous location classifications including Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.00
- Package Height: 4.10
- Package Weight: 1.50
