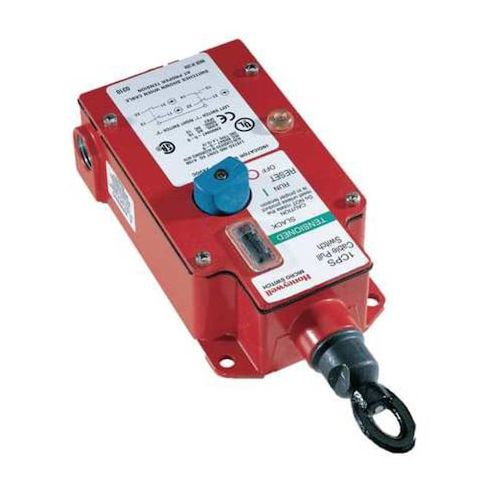

Cable-Pull Safety Switch - 1CPS, Emergency Stop, 250 ft Span, IP67 MPN:1CPSA6A
Protect your personnel and equipment with Honeywell's 1CPS Series Emergency Cable Pull Switch, a reliable and maintained-action safety switch designed for use in conveyor and automated system applications. This single-head switch features direct opening contacts, auxiliary contacts for monitoring or signaling, and a tension window for easy cable installation. With a maximum cable span of 250 feet and IP67 rated enclosure, it provides a safe and efficient solution for emergency stop signaling. Ideal for use in harsh environments, this switch is perfect for applications such as manufacturing, mining, and material handling, where safety and reliability are paramount.
Top product features:
- Integrated 24V DC LED light for visual indication
- Gold alloy contacts with 2NO/2NC configuration for reliable switching
- Rotary knob for manual reset after actuation
Top product applications:
- Conveyor system applications
- Automated system applications
- Emergency stop signaling devices
Honeywell's 1CPS Series Emergency Cable Pull Switch is a single-head, maintained-action cable pull safety switch intended for use as an emergency stop signaling device in conveyor and automated system applications. The internal mechanism latches when the actuating cable is either pulled, slackened, or broken, and requires manual reset by means of a rotary knob after actuation. This model features equipped with direct opening contacts per manufacturer specifications and auxiliary contacts that are electrically isolated for monitoring or signaling purposes. Includes a tension window with midpoint line to aid in cable installation according to provided instructions.
Key Features:
- - Contact Configuration: 2NO/2NC gold alloy contacts
- - Maximum Cable Span: 250 ft (single cable switching)
- - Indicator: Integrated 24V DC LED light
- - Case Material: Zinc die cast
- NEMA ratings 1, 12, 13, and 4
- IP67 rated enclosure
- - Electrical Ratings: AC—0.05A @ 250V
- DC—2.5A @ 24V
- Thermal current—10A
- - Operating Temperature Range: -40°F to +176°F
- - Mounting Style: Single end with left or right cable connection location
- - Reset Mechanism: Requires manual reset by means of a rotary knob after actuation
- - Dimensions: Length—10.62 in., Width—3.9 in., Depth—2.57 in.
- - Wiring Entry Size: 1/2 in NPT threading
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.30
- Package Width: 8.50
- Package Height: 3.80
- Package Weight: 4.60
