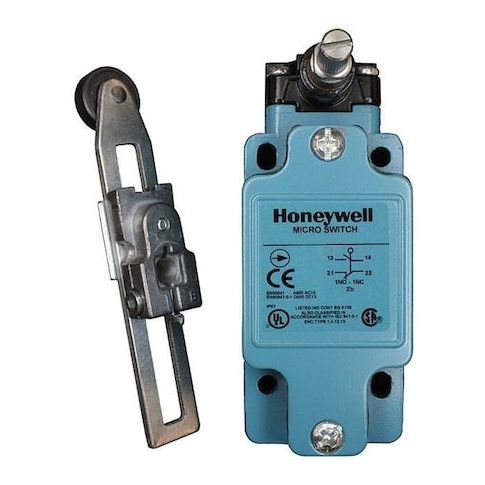

Limit Switch - GLA Series, Rotary Roller Lever, 2NC/2NO, IP67, NEMA 4 MPN:GLAA20A2A
Honeywell's MICRO SWITCH GLA Series Limit Switch is a versatile and reliable solution for various industrial applications, including manufacturing, oil and gas, and water treatment. Its modular design allows for customization to meet specific needs, while its rugged die-cast zinc housing and IP67 rating ensure durability in harsh environments. The 2NC/2NO contact configuration and adjustable arm length make it suitable for a range of applications, from machine control to conveyor belt monitoring. With a wide temperature range and NEMA 4 rating, this limit switch is perfect for use in applications where reliability and safety are paramount.
Top product features:
- Rotary roller lever actuator with spring return action
- Contact configuration: 2NC/2NO (DPDT)
- IP67 rated, providing protection against dust and water ingress
Top product applications:
- Industrial Automation
- Machine Guarding Systems
- Conveyor Systems
Honeywell's MICRO SWITCH GLA Series Limit Switch is a general purpose rotary limit switch rated for use in applications requiring compliance with EN50041 specifications. It features a modular design allows for multiple configurations based on application requirements. The unit has a die-cast zinc housing and side-mounted rotary roller lever actuator with spring return action.
Key features:
- - Contact configuration: 2NC/2NO (DPDT)
- - AC rating: 10A at 600V
- DC rating: 10A at 250V
- - Actuator style: Side rotary roller lever, adjustable arm length from 1.50" to 3.60"
- - Body dimensions: Height 3.23", width/depth 1.65"
- - Operating temperature range: -13°F to 185°F
- - Mounting style: Surface mount with four-hole rectangular pattern (0.21" dia holes)
- - Electrical connection via screw terminals
- wiring entry is threaded (1/2 in NPT)
- - Roller diameter: 0.75", nylon material
- - Movement direction: CW or CCW
- operating force of 2.9 in-lb
- - Enclosure ratings: NEMA types 1, 4, 12, and 13
- IP67 rated
- - Standards met include CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.90
- Package Height: 2.30
- Package Weight: 1.15
