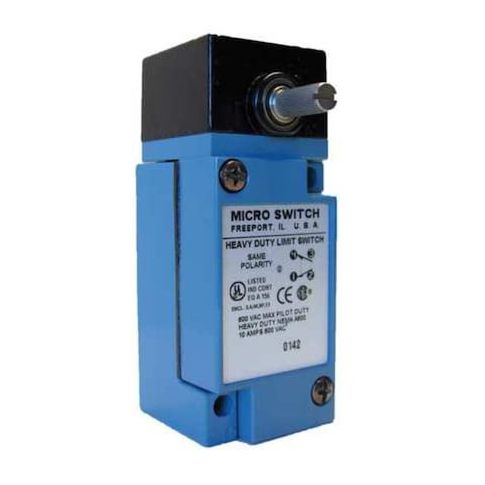

Limit Switch - Heavy Duty, Rotary, SPDT, 10A, Zinc Body, NEMA Rated MPN:LSN3K
The Honeywell Heavy Duty Limit Switch is a reliable and durable solution for industrial environments. Suitable for use in harsh conditions, this rotary-style switch features a die-cast zinc body and maintained action capability in both CW and CCW directions. With 10A contact rating and SPDT operation, it's ideal for applications requiring precise control and high current flow. Its NEMA rated enclosure and IP65/66/67 rating ensure protection against dust, water, and corrosion. This limit switch is perfect for use in manufacturing, material handling, and other industrial settings where reliability and durability are paramount.
Top product features:
- Contact Rating: 10A at 600V AC, 10A at 250V DC
- Maintained action capability in both CW and CCW directions
- Die-cast zinc body with screw terminal connections for secure wiring
Top product applications:
- Machine Tool Guarding
- Industrial Automation Systems
- Material Handling Equipment
The Honeywell Heavy Duty Limit Switch from the LSN Series is a rotary-style, side-actuated switch suitable for use in industrial environments. It features a die-cast zinc body with a standard form factor and no lever actuator included. The unit features maintained action capability in both CW and CCW directions, utilizing screw terminal connections for secure wiring. This limit switch supports single-pole double-throw (SPDT) operation with 1 normally closed (NC) and 1 normally open (NO) contact.
Key Features:
- - Contact Rating: 10A at 600V AC
- 10A at 250V DC
- - Actuator Style: Rotary head, no lever
- side location
- - Action: Maintained CW/CCW movement
- - Body Construction: Die cast zinc as specified by manufacturer
- - Mounting: Surface mount with two diagonal holes (0.2 in diameter)
- - Electrical Connection: Screw terminals
- threaded entry, 1/2 in NPT
- - Travel Parameters: Pretravel—65°, Overtravel—20°, Differential travel—40°
- - Operating Temperature Range: 30°F to 250°F (-1°C to 121°C)
- - Enclosure Ratings: NEMA types 1, 3, 4, 4X, 6, 6P,12,13
- IP65/66/67 rated
- - Standards Compliance: CCC, CE, CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 5.90
- Package Height: 3.20
- Package Weight: 1.42
