Actuator, Damper & Valve, 88 in-lb, 24V AC MPN:MS7510A2008/U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3410513
Actuator, Damper & Valve, 88 in-lb, 24V AC

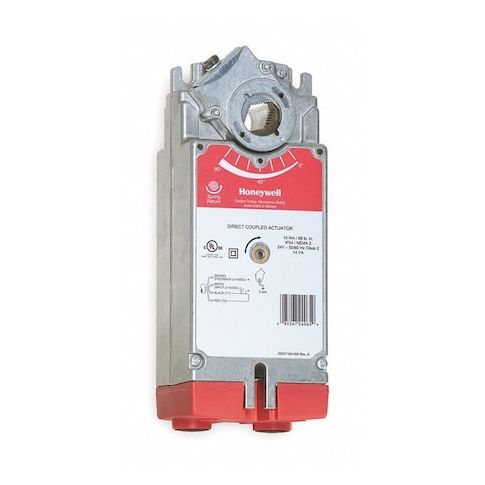

The Honeywell Electric Actuator is a reliable and efficient solution for controlling valves and dampers in a wide range of industrial and commercial applications. With a temperature range of -40 to 140F, this actuator can withstand harsh environments and provide precise control over valves and dampers. Its proportional and floating-point signal type ensures smooth and accurate operation, while its spring return feature ensures reliable return to the original position. Ideal for use in HVAC, industrial processes, and other applications where precise control is critical, the Honeywell Electric Actuator offers a reliable and efficient solution for controlling valves and dampers.
Top product features:
- Self-centering clamping shaft provides precise positioning and secure operation
- Proportional signal type allows for smooth and precise control of valve movement
- Spring return mechanism enables the actuator to return to its original position after releasing control signal
Top product applications:
- Damper application
- Valve application
- Signal type floating point application
Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Proportional, Rated Torque 88 in-lb, Input Voltage 24V AC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Spring Return Spring Return, Time to Close 90 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.10
- Package Width: 6.90
- Package Height: 3.70
- Package Weight: 7.15
Product info last updated on March 6, 2026 6:47am UTC
Category: HVACR and Appliance Controls
