Two Position Direct Coupled Actuator, Damper, 175 in-lb, 120V AC, Hardwired, NEMA 2/IP54 MPN:MS4120F1006/U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2629033

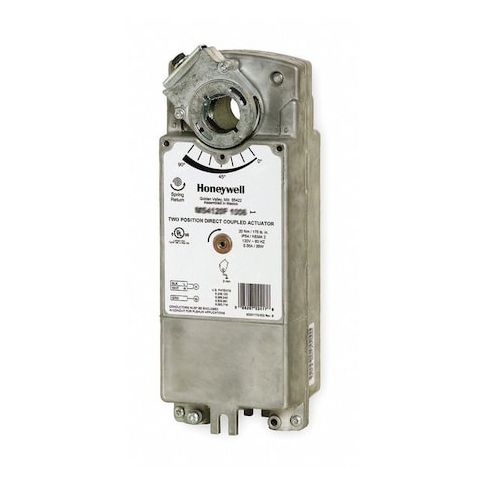

Two Position Direct Coupled Actuator, Damper, 175 in-lb, 120V AC, Hardwired, NEMA 2/IP54
The Honeywell Two Position Direct Coupled Actuator is a reliable and efficient solution for a variety of applications, including smoke and fire suppression systems. This hardwired actuator features a 175 in-lb torque rating and a 15-second time to close, making it ideal for applications where precise control is crucial. With its NEMA 2/IP54 rating, it can withstand harsh environments and provide long-lasting performance. The actuator's direct mount design and spring return feature allow for easy installation and maintenance, making it a valuable addition to any system. Suitable for use in commercial and industrial settings, this actuator delivers reliable control and peace of mind.
Top product features:
- Two Position Direct Coupled Actuator provides on/off signal control
- Direct Mount design allows for easy installation
- Spring Return feature ensures the actuator returns to its original position after power loss
Top product applications:
- Smoke Application Rated
- Fire Application Rated
- Valve Application Damper
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 175 in-lb, Input Voltage 120V AC, Contact Form SPST, Electrical Connection Type Hardwired, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Smoke Application Rating Smoke Application Rated, Fire Application Rating Fire Application Rated, Time to Close 15 sec, Shaft Type 3/8 in to 1-3/8 in Round or 3/8 in to 11/16 in Square, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 7.00
- Package Height: 4.00
- Package Weight: 8.16
Product info last updated on February 19, 2026 10:27am UTC
Category: HVACR and Appliance Controls
