Electric Actuator, 44 in.-lb.-40 to 149 MPN:MS7505A2130/U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2430276

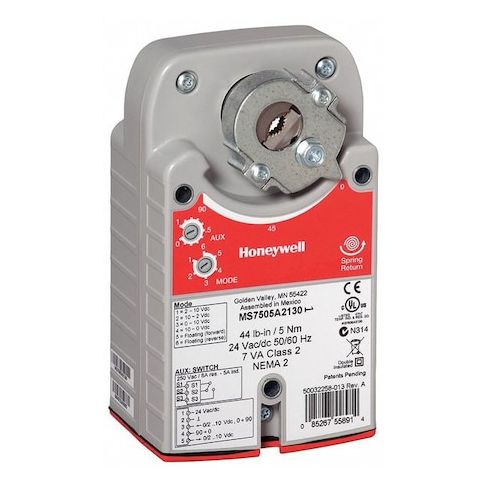

Electric Actuator, 44 in.-lb.-40 to 149
This Honeywell Electric Actuator is a versatile solution for valve and damper applications requiring precise control. With a rated torque of 44 in-lb, it provides smooth and reliable operation, ideal for use in various industries such as HVAC, water treatment, and chemical processing. The actuator's proportional control and floating point signal type enable precise control over valve position, ensuring optimal system performance. Its self-centering clamping shaft and spring return feature make it easy to install and maintain, while its wide temperature range and compact design make it suitable for use in a variety of environments.
Top product features:
- Self-Centering Clamping Shaft provides consistent and reliable actuation
- Spring Return allows the actuator to return to its original position after activation
- Proportional Floating Point Signal Type enables precise control of the actuator's movement
Top product applications:
- Damper Application
- Valve Application
- Signal Type Floating Point
Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Proportional, Rated Torque 44 in-lb, Input Voltage 24V AC/DC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Spring Return Spring Return, Time to Close 90 sec, Shaft Type Self-Centering Clamping, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 149 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 3 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 5.00
- Package Height: 4.50
- Package Weight: 3.85
Product info last updated on January 22, 2026 9:50am UTC
Category: HVACR and Appliance Controls
