Triple Aquastat, Burner Control, 130F-240F MPN:L8124L1011
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1947206

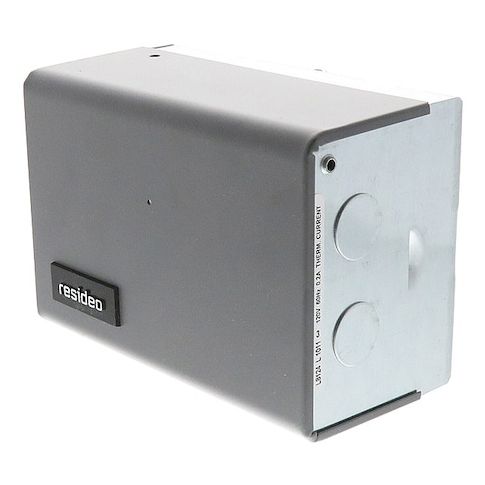

Triple Aquastat, Burner Control, 130F-240F
The Honeywell Triple Aquastat is a high-performance immersion controller designed for demanding applications. This versatile device provides precise temperature control, with a maximum control temperature of 240°F and a minimum control temperature of 130°F. Its adjustable differential temperature range and five-switch configuration enable flexible control and monitoring of burner circuits. Suitable for use in high-limit applications, the Triple Aquastat is ideal for commercial and industrial settings, such as water heaters, boilers, and steam generators. Its reliable performance and customizable features make it an excellent choice for multizone control systems.
Top product features:
- Triple Aquastat functionality allows for precise temperature control between 130F and 240F.
- Burner control is achieved through a 5-switch design.
- Temperature differential is adjustable between 10F and 25F for low-limit control.
Top product applications:
- High Temperature Applications such as Boilers, Water Heaters, and Furnaces
- Industrial Processes requiring precise temperature control
- Commercial or Residential Water Heating Systems
Immersion Controller, Application High Limit, Maximum Control Temperature 240 Degrees F, Minimum Control Temperature 130 Degrees F, Differential Temperature 10 Degrees F Fixed (High Limit), 10 Degrees F to 25 Degrees F Adjustable (Low Limit), Mounting Orientation Horizontal, Number of Switches 5, Burner Circuit Voltage Type Line Voltage, Low Voltage, Capillary Tube Length 3 3/8 in, Spud Size Not Applicable, Contact Form SPST, Multizone Control Compatible Yes, Product Type Immersion Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 5.20
- Package Height: 7.00
- Package Weight: 4.46
Product info last updated on February 2, 2026 8:14pm UTC
Category: HVACR and Appliance Controls
