Electric Actuator, 20 to 125F, 1.8VA MPN:ML6161B2024/U
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0785644
Electric Actuator, 20 to 125F, 1.8VA

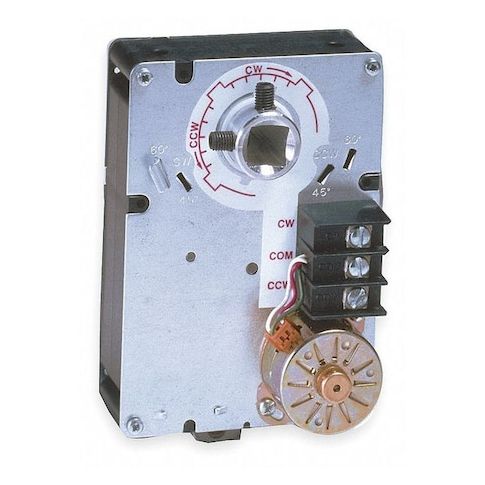

The Honeywell Electric Actuator is a versatile and reliable solution for a wide range of applications, including valve and damper control. With a rated torque of 35 in-lb and a maximum operating temperature of 125°F, this actuator can handle demanding environments. Its floating point, on/off signal type and SPDT contact form make it suitable for various control schemes. The actuator's spring return and non-spring return options provide flexibility in design. Its compact size and screw terminal connections make it easy to integrate into new or existing systems, making it an ideal choice for industrial automation and control applications.
Top product features:
- Actuator provides a rated torque of 35 in-lb for controlled valve operation.
- Actuator features a spring return mechanism for automatic repositioning after power loss.
- Actuator has a shaft rotation of CW/CCW for flexible mounting and operation options.
Top product applications:
- Valve Application
- Damper
- Signal Type Floating Point, On/Off
Actuator, Valve Application Damper, Signal Type Floating Point, On/Off, Rated Torque 35 in-lb, Input Voltage 24V AC, Contact Form SPDT, Electrical Connection Type Screw Terminals, NEMA Rating 1, IP Rating Not Applicable, Spring Return Non-Spring Return, Time to Close 90 sec, Shaft Type 2 Set Screws, Aluminum Hub, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 125 Degrees F, Minimum Operating Temperature 20 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.30
- Package Height: 6.50
- Package Weight: 1.62
Product info last updated on January 31, 2026 10:11pm UTC
Category: HVACR and Appliance Controls
