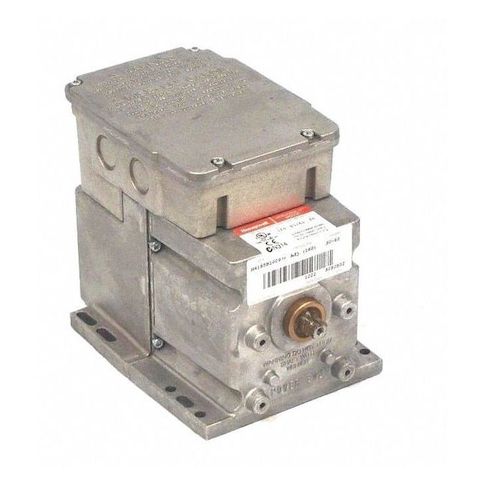

Modutrol Iv Motor. Spring Return. 20Va, MPN:M4185B1009/U
Modutrol Iv Motor. Spring Return. 20Va,
The Honeywell Modutrol Iv Motor is a reliable and efficient rotary actuator ideal for various applications, including damper and valve control. Its 60 in-lb rated torque and 120V AC input voltage make it suitable for a range of industries. The spring return feature allows for automatic return to the original position, ensuring consistent operation. This motor is perfect for use in applications where precise control and reliability are crucial, such as in HVAC systems, industrial processes, and building automation. Its durable design withstands temperatures from -40°F to 150°F, making it a versatile solution for various environments.
Top product features:
- Spring Return functionality allows the motor to automatically return to its original position after release.
- Rotary Actuator design enables the motor to drive a valve or damper through a 160-degree rotation.
- SPDT (Single Pole, Double Throw) contact form allows the motor to control two separate circuits with a single input.
Top product applications:
- Dampers
- Valves
- Signal Actuation
Rotary Actuator, Valve Application Damper and Valve, Signal Type On/Off, Rated Torque 60 in-lb, Input Voltage 120V AC, Contact Form SPDT, Electrical Connection Type Hardwired, NEMA Rating 3, Spring Return Spring Return, Time to Close 60 sec, Shaft Type Double-Ended, Shaft Rotation CW, Stroke Degree 160 Degrees , Mounting Type Foot Mount, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -40 Degrees F, Overall Width 5 1/2 in, Application Dampers, Valves
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 6.00
- Package Height: 7.30
- Package Weight: 9.15
Product info last updated on January 23, 2026 5:47am UTC
Category: HVACR and Appliance Controls
