100HBFD-1520 15 GPM 1/3 HP 83 Gallon Boiler Feed, 161054 MPN:161054
Free Shipping
In Stock
This duplex boiler feed pump system is designed for efficient water circulation in boiler feed and condensate transfer systems. With a horizontal steel receiver tank and two vertically mounted pumps driven by single-phase electric motors, it provides reliable operation within specified flow, pressure, temperature, and head limits. The system is suitable for various applications, including commercial and industrial settings, and offers benefits such as increased efficiency, reduced energy consumption, and improved system reliability. Its compact design and easy integration into piping systems make it an ideal solution for a wide range of boiler feed and condensate transfer needs.
Top product features:
- Pump Configuration: Duplex boiler feed pump system with two pumps mounted vertically.
- Tank Capacity: 100 gal steel receiver tank with horizontal orientation.
- Two 1/3 hp single-phase motors operating at up to 3,500 RPM on 115/230V AC, 60 Hz power.
Top product applications:
- Boiler Feed and Condensate Transfer Systems
- Boiler Feed and Condensate Piping Systems
- Industrial Water Circulation Systems

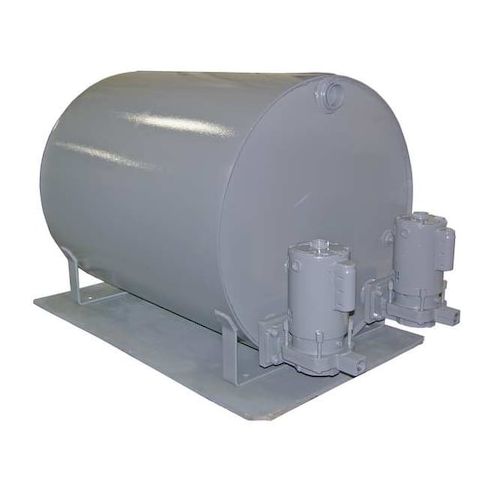

This item is a duplex boiler feed pump system with a horizontal steel receiver tank. It is configured with two vertically mounted pumps driven by single-phase electric motors and is intended to move water within boiler feed and condensate transfer systems. The unit operates within specified flow, pressure, temperature, and head limits and includes inlet, discharge, vent, overflow, and drain connections sized for integration into piping systems.
Key Features:
- Pump Configuration: Duplex boiler feed pump system with two pumps mounted vertically.
- Tank Capacity: 100 gal steel receiver tank with horizontal orientation.
- Motor and Power: Two 1/3 hp single-phase motors operating at up to 3,500 RPM on 115/230V AC, 60 Hz power.
- Flow Performance: Maximum flow rates specified up to 34 gpm depending on head, with a maximum head rating of approximately 52 ft.
- Pressure Rating: Discharge pressure specified at 20 psi.
- Temperature Rating: Maximum liquid temperature specified up to 200°F.
- Construction: Cast iron pump housings with bronze impellers and stainless steel threaded shafts.
- Connections: NPT inlet, discharge, vent, overflow, and drain ports sized up to 3 in.
- Included Components: Supplied with gauge glass assembly and make-up valve assembly.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 52.00
- Package Width: 31.00
- Package Height: 31.00
- Package Weight: 517.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
