Linear Rail, 609.6mm L, 103.2 mm W, 40 mm H MPN:HVR-1-024.000
Linear Rail, 609.6mm L, 103.2 mm W, 40 mm H

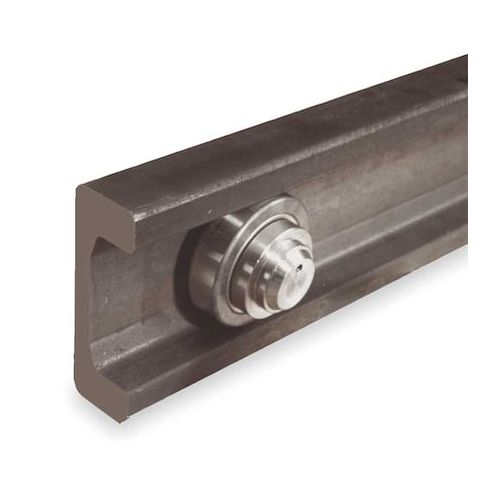

The Hevi-Rail Linear Rail is a high-performance component designed for precision motion control applications. Its robust steel construction and U-channel design provide a stable and durable platform for Hevi-Rail axial bearings, ensuring smooth and accurate movement. With its compact 103.2mm width and 40mm height, this linear rail is ideal for use in applications where space is limited, such as in robotics, automation, and precision machinery. Its metric design and Brinell harness steel finish ensure precise alignment and long-lasting durability, making it a reliable choice for demanding industrial environments.
Top product features:
- Linear Rail is made of steel for durability and strength.
- Rail is a channel type with a U-Channel design for stability and support.
- Linear Rail is designed to work with Hevi-Rail Axial Bearings for smooth motion and precise movement.
Top product applications:
- Linear Motion Systems
- Precision Machine Tooling
- Automotive Assembly and Testing
Linear Bearing Rail, Overall Length 24 in, Overall Width 103.2 mm, Overall Height 40 mm, Rail Material Steel, Manufacturer Size 1, Number of Mounting Holes Not Applicable, Rail Finish Brinell Harness Steel, Rail Type Channel, System of Measurement Metric, For Use With Hevi-Rail Axial Bearings, Mounting Hole Center to Center -, Series Hevi-Rail, Mounting Hole Size -, Channel Type U-Channel, Thickness Not Applicable, Channel Width 70.1 mm, Channel Opening Width 70.1 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.00
- Package Width: 5.00
- Package Height: 5.00
- Package Weight: 21.00
Product info last updated on February 7, 2026 12:17pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
