Ball Check Valve, TC Series, Inline, 1 1/2 in NPT, Polypropylene Body, EPDM Seal MPN:TC30150TE
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for a variety of applications. Its US origin ensures high-quality construction, while its compact design fits seamlessly into tight spaces. Perfect for use in residential and commercial plumbing systems, this valve prevents backflow and ensures water flows in one direction. Ideal for use in pools, hot tubs, and water treatment systems, it helps maintain water quality and prevents contamination. With a lead time of 30 days and a minimum order quantity of 1, this valve is easily integrated into your project, providing peace of mind and reliable performance.
Top product features:
- It allows fluid to flow in one direction to prevent backflow.
- It is designed for use in systems where fluid flow needs to be controlled.
- It has a compact design that fits in tight spaces.
Top product applications:
- Pool Circulation System
- Well Pump System
- Hydraulic Lift System

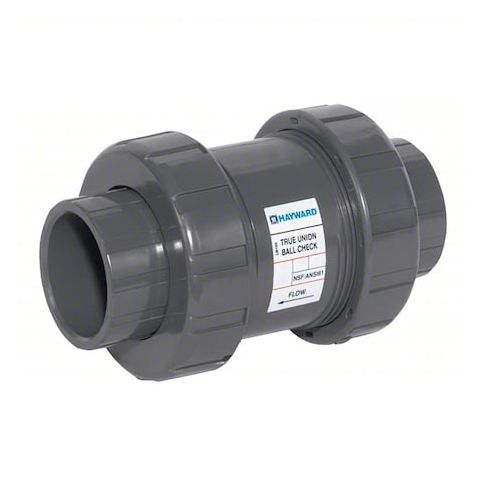

The HAYWARD FLOW CONTROL TC30150TE is an inline 2-way ball check valve with a polypropylene body and EPDM seal and seat materials. It uses a free-moving ball check mechanism for one-direction flow and reverse-flow checking, for use in liquid handling systems and process lines with chemicals compatible with polypropylene and EPDM materials. This valve has 1-1/2 in NPT connections on both sides, a 1.5 psi cracking pressure, and can be mounted in horizontal or vertical orientations.
Key Features:
- - Valve type: Ball check valve with ball check mechanism for one-direction flow control applications
- - Body material: Polypropylene
- - Seal and seat material: EPDM
- - Connection size: 1-1/2 in on side 1 and side 2
- - Connection type: NPT on side 1 and side 2
- - Flow capacity: Cv 45
- - Cracking pressure: 1.5 psi
- - Maximum operating pressure: 235 psi
- - Operating temperature range: 20 Degrees F to 250 Degrees F
- - Mounting orientation: Horizontal, Vertical
- - Overall height: 7 1/16 in
- - Standards: ASTM D1784, ASTM D4101
- - Valve body style: Inline
- - Valve series: TC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 15.00
- Package Height: 13.00
- Package Weight: 1.75
