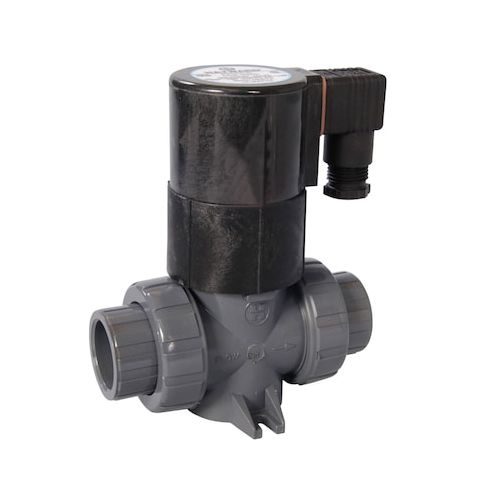

Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 220V AC, Inline Single, Direct Acting MPN:SV50050TV220A

• The HAYWARD FLOW CONTROL SV50050TV220A is a normally closed, direct acting solenoid valve designed for controlling the flow of water. It includes the coil and sealing components required for operation. Constructed with a PVDF valve body and FPM seals, this inline single 2-way valve supports a nominal pipe size of 1/2 inch and features a 3/8 inch orifice diameter. Rated for operation at 220V AC input and consumes 19.2 watts, providing automated flow control

• supports horizontal and vertical mounting per product specifications.

  Key Features:

  • - Valve Type and Operation: Normally closed, direct acting, inline single 2-way configuration
  • - Materials: PVDF body and FPM seals
  • - Connections: Inlet and outlet with NPT thread type, nominal pipe size 1/2 inch
  • - Flow Capacity: Maximum flow rate 3.8 gpm, flow coefficient (Cv) 2.3
  • - Electrical: Includes coil
  • voltage 220V AC
  • wattage 19.2 W
  • coil insulation class F
  • coil enclosure watertight
  • NEMA 4 enclosure rating
  • no external junction box required
  • - Environmental Rating: NEMA 4 enclosure rating
  • intended for indoor and outdoor use
  • corrosive environment suitability is not implied beyond the enclosure rating
  • - Temperature Ratings: Ambient temperature range 10°F to 240°F
  • fluid temperature range 120°F to 200°F
  • - Pressure Ratings: Operating pressure differential 0 to 90 psi for water
  • - Dimensions: Overall length 5 in
  • overall height 6-13/32 in
  • - Electrical Connections: 1/2 in conduit with SJ-type cord
