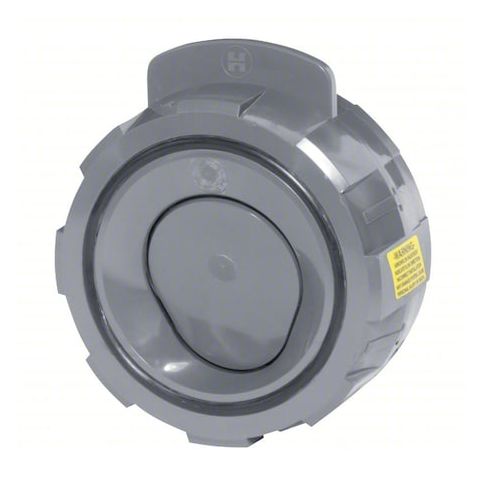

Swing Check Valve, WCV Series, Inline, Wafer Connection, 10 in, PVC Body MPN:WCV11000VH

The HAYWARD FLOW CONTROL WCV11000VH is a 10 in. inline swing check valve with wafer connections on both sides. It uses a hinged swing mechanism to allow flow in one direction and close when flow reverses, and is intended to reduce reverse flow in compatible chemical-service piping systems. The valve features a PVC body, a 316 stainless steel check mechanism, an FKM seal, and a Hastelloy spring. It can be mounted in horizontal or vertical orientations.

Key Features:

• Swing check mechanism is configured to close on reverse flow.
• 10 in. nominal valve size with 10 in. wafer connections on both sides.
• PVC body construction for chemical-service applications.
• 316 stainless steel check mechanism material.
• FKM seal material and Hastelloy spring material.
• Maximum operating pressure: 150 psi.
• Operating temperature range: 34°F to 140°F.
• Flow capacity (Cv): 2,249.
• Inline valve body style.
• 2-way valve configuration.
• ANSI 150 and ASTM D1784.
