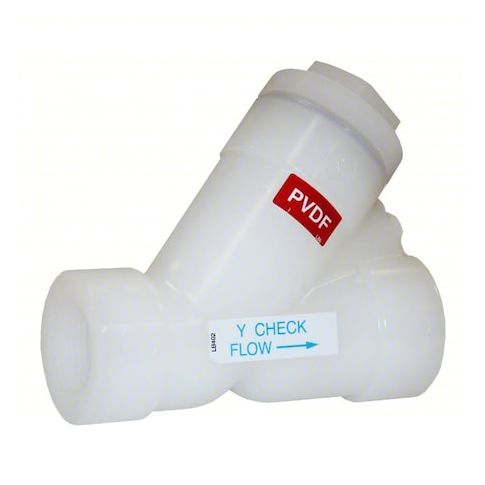

Piston Check Valve, YC Series, Y-Style, 1 in, Socket x Socket Female, PVDF MPN:YC50100S
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for ensuring one-way flow in your plumbing system. Suitable for a variety of applications, including pool equipment and industrial systems, this check valve prevents backflow and maintains system pressure. Its compact design and easy installation make it a convenient choice for new installations or retrofits. With a durable construction and long-lasting performance, the Hayward Check Valve provides peace of mind and minimizes maintenance costs. Its versatility and reliability make it an ideal component for a range of industries and applications.
Top product features:
- Check Valve allows fluid to flow in one direction while preventing backflow.
- Check Valve is designed to prevent water hammer and other pressure-related issues.
- Check Valve has a compact design that fits within tight spaces.
Top product applications:
- Pool plumbing systems
- Well water systems
- Hydroelectric power systems
HAYWARD FLOW CONTROL YC50100S is a 1 in. piston check valve with a Y-style body for one-way flow control in systems handling corrosive chemicals. It includes a guided piston check mechanism for one-way flow applications. The PVDF body, 316 stainless steel check mechanism, and FKM seal are specified for corrosive chemical media and one-way flow applications.
Key Features:
- Guided piston check mechanism for one-way flow control
- Body material: PVDF
- Check mechanism material: 316 stainless steel
- Seal material: FKM
- Valve body style: Y-style
- Nominal valve size: 1 in.
- Connections: 1 in. female socket on both sides
- Flow coefficient (Cv): 9
- Maximum operating pressure: 150 psi
- Operating temperature range: 10°F to 300°F
- Mounting orientation: Horizontal
- Media: Corrosive chemicals
- Valve ways: 2-way
- Hex size: 1 1/2 in.
- Height, cap to inlet center: 3 5/8 in.
- Silent check: Standard
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 10.00
- Package Weight: 0.94
