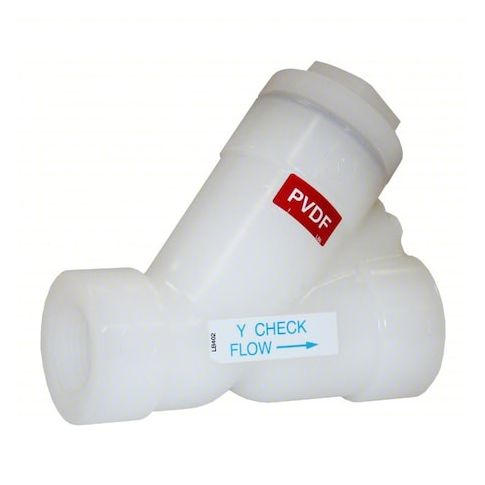

Piston Check Valve, YC Series, Y-Style, 1 in FNPT, PVDF Body, FKM Seal
HAYWARD FLOW CONTROL YC50100T is a 1 in. piston check valve with a Y-style body for one-way flow control in systems handling compatible corrosive chemical media. Guided piston mechanism for one-way flow applications. The valve features a PVDF body, 316 stainless steel check mechanism, and FKM seal, with female NPT connections on both ends for inline installation in horizontal piping.
Key Features:
- 1 in. piston check valve
- Y-style body
- Piston check mechanism for backflow control
- Body material: PVDF
- Check mechanism material: 316 stainless steel
- Seal material: FKM
- Connection size: 1 in. on side 1 and side 2
- Connection type: female NPT on both ends
- For media: compatible corrosive chemicals
- Maximum operating pressure: 150 psi
- Operating temperature range: 10°F to 300°F
- Cv: 9
- Mounting orientation: horizontal
- Valve ways: 2-way
- Hex size: 1 1/2 in.
- Height, cap to inlet center: 3 5/8 in.
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 10.00
- Package Weight: 0.96
