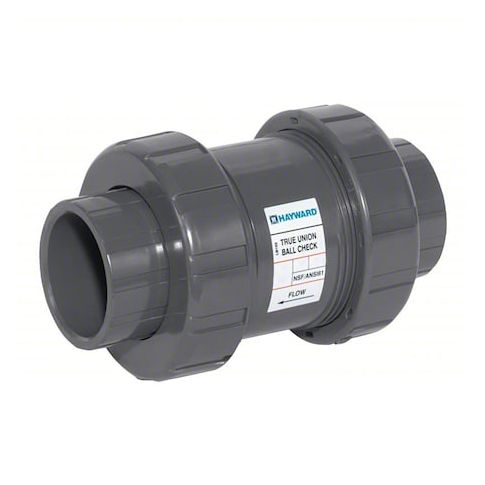

Ball Check Valve, TC Series, Inline, 2 in Flange, PVC Body, FKM Seal MPN:TC10200F
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment plants, and industrial processes. Its US origin ensures high-quality construction and performance. This drop ship item ships in 15 days, making it a convenient choice for businesses and individuals. With a minimum order quantity of one unit, it's perfect for small-scale projects or replacement parts. Its compact dimensions and lightweight design make it easy to handle and store. The Hayward Check Valve is a versatile and dependable component for a wide range of applications, providing consistent flow control and minimizing backpressure.
Top product features:
- Check Valve allows fluid to flow in one direction while preventing backflow.
- Drop Ship Item indicates that the product can be shipped directly from the manufacturer to the customer.
- Lead Time of 15 days allows for timely delivery of the product.
Top product applications:
- Pool Circulation Systems
- Well Pump Systems
- Hydrostatic Test Valves
The HAYWARD FLOW CONTROL TC10200F is an inline 2-way ball check valve with a PVC body and 2 in. flanged connections on both sides. It uses a ball check mechanism to allow flow in one direction and restrict reverse flow for use in liquid handling systems and process lines with compatible corrosive chemicals. The valve can be mounted horizontally or vertically and has a 1.5 psi cracking pressure.
Key Features:
- Ball check mechanism: Uses a free-moving ball to control one-way flow and restrict backflow.
- Body material: PVC construction.
- Connection size and type: 2 in. flange connections on side 1 and side 2.
- Valve body style: Inline, 2-way configuration.
- Flow capacity: Cv 130.
- Pressure rating: Maximum operating pressure 235 psi.
- Temperature range: 34 degrees F to 140 degrees F.
- Seal material: FKM.
- Seat material: EPDM.
- Media compatibility: For compatible corrosive chemicals.
- Certifications and standards: Meets multiple NSF, ANSI, and ASTM standards.
- Overall height: 8 9/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 6.05
