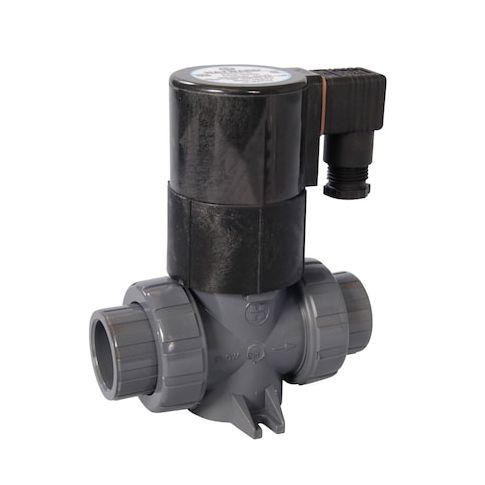

Solenoid Valve, 2-Way, Normally Closed, 1 in Pipe Size, 220V AC, Inline Single, Direct Acting, PVDF MPN:SV50100SV220A

• The HAYWARD FLOW CONTROL SV50100SV220A is a normally closed, 2-way inline solenoid valve designed to regulate water flow using an electromechanical coil actuation. It operates with a direct-acting mechanism for control of fluid passage and includes the coil and seals necessary for installation. Suitable for horizontal or vertical mounting, this valve handles water with a maximum flow rate of 11.5 gallons per minute and supports a nominal pipe size of 1 inch. The valve is constructed with a PVDF body and FPM seals, Fluid temperature range: 120°F to 200°F

• Ambient temperature range: 10°F to 240°F.

  Key Features:

  • - Valve Type: Inline Single, 2-Way
  • - Operation: Direct Acting, Normally Closed
  • - Body Material: PVDF
  • - Seal Material: FPM
  • - Maximum Flow Rate: 11.5 gpm
  • - Nominal Pipe Size: 1 in
  • - Orifice Diameter: 3/8 in
  • - Maximum Operating Pressure Differential: 90 psi Water
  • - Fluid Temperature Range: 120°F to 200°F
  • - Ambient Temperature Range: 10°F to 240°F
  • - Coil Voltage and Wattage: 220V AC, 19.2 W
  • - Coil Insulation Class: F
  • - Electrical Connection: 1/2 in Conduit
  • SJ-Type Cord
  • - Coil Enclosure: Watertight, Without Junction Box
  • - Mounting Orientation: Horizontal or Vertical
  • - Environmental rating: Indoor or outdoor use
  • - NEMA Enclosure Rating: 4
  • - Inlet and Outlet Connection Type: IPS
  • - Thread Type: NPT
  • - Includes: Coil and Seal
  • - Compliance Standards: CSA, UL Listed
