Swing Check Valve, SW Series, 4 in, Flanged, Inline, CPVC MPN:SW2400V
Swing Check Valve, SW Series, 4 in, Flanged, Inline, CPVC

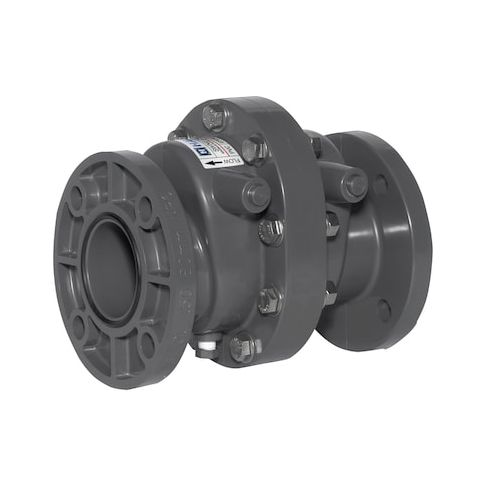

HAYWARD FLOW CONTROL SW2400V is a 4 in. CPVC swing check valve with an inline body and flanged connections on both ends. It is configured for one-way flow control with a swing check mechanism that closes in response to reverse flow. The valve is specified for water handling systems with a full-flow valve design, 150 psi maximum operating pressure, and horizontal or vertical mounting orientation.
Key Features:
- 4 in. nominal valve size with 4 in. flange connections on both ends
- CPVC body with swing check mechanism
- ANSI flange class: Class 150
- Full-flow valve design
- Cracking pressure: 3 psi
- Flow rating: 275 gpm
- Cv: 100
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 180 degrees F
- Seat material: EPDM
- Seal material: FKM
- Mounting orientation: horizontal or vertical
- Standards: ASTM D1784
- Overall dimensions: 11.81 in. L x 11 3/8 in. H x 10 61/64 in. W
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.18
- Package Width: 11.56
- Package Height: 13.00
- Package Weight: 21.58
