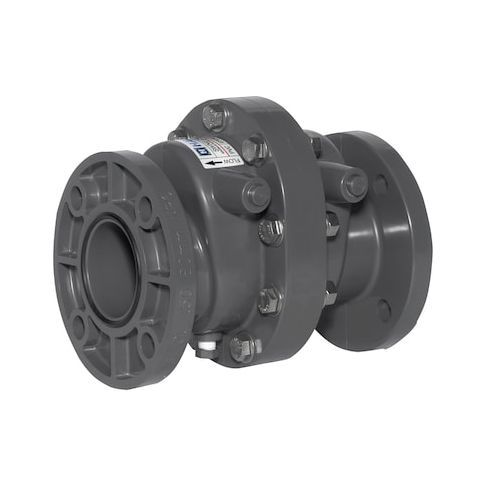

Check Valve, SW Series, Swing, 6 in, Flanged, Inline, PVC Body, 15.75 in Overall L MPN:SW1600V
The Hayward Check Valve is a reliable and efficient solution for a variety of applications, including pool and spa systems, water treatment plants, and industrial processes. Its swing mechanism and PVC body design provide a durable and corrosion-resistant seal, while its FPM seal material ensures long-lasting performance. With a maximum water pressure of 150 psi, this check valve can handle high-pressure applications and is suitable for use in both horizontal and vertical orientations. Its compact size and easy installation make it an ideal choice for a range of industries and applications, from residential to commercial and industrial use.
Top product features:
- Swing mechanism allows for easy flow of fluids
- FPM seals provide a reliable shut-off
- Full flow capability ensures maximum water pressure
Top product applications:
- Pool and Spa Systems
- Water Treatment Plants
- Industrial Process Control
HAYWARD FLOW CONTROL SW1600V is a 6 in check valve with a swing mechanism for one-way water flow control in piping systems. It features an inline PVC body with flanged connections on both ends and is rated with a flow capacity of 650 gpm and a Cv of 150. The valve can be mounted in horizontal or vertical orientations and is rated for up to 150 psi operating pressure, including 150 psi at 70 Degrees F for water service.
Key Features:
- 6 in check valve with swing check mechanism and inline body design
- PVC body and PVC check mechanism
- 6 in nominal valve size with 6 in flange connections on both sides
- ANSI Flange Class: Class 150
- Flow capacity: 650 gpm
- Cv: 150
- Cracking Pressure: 3 psi
- Seal Material: FKM
- Seat Material: FKM
- Mounting Orientation: Horizontal, Vertical
- Operating Temperature Range: 34 Degrees F to 140 Degrees F
- Check mechanism: Standard
- Standards: ASTM D1784
- Overall Length: 15.75 in
- Overall Height: 15 5/8 in
- Width: 14 49/64 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.12
- Package Width: 17.12
- Package Height: 20.68
- Package Weight: 51.60
