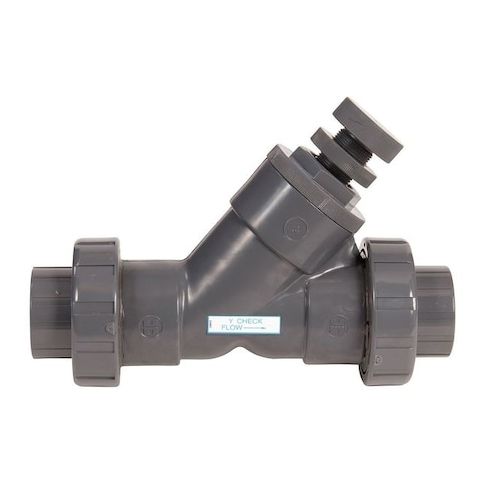

Y-Check Valve, True Union, Spring-Loaded, 1", PVC/FPM, Threaded, Adjustable 2-15 psi MPN:SLC10100TU

HAYWARD FLOW CONTROL SLC10100TU is a 1 in. spring-loaded Y-check valve with a true union body design for check-valve flow control in water systems within the listed pressure and temperature ratings. It features a PVC body and PVC piston check mechanism, 1 in. FNPT x FNPT threaded connections, and an adjustable cracking pressure range of 2 to 15 psi. The Y-style body supports horizontal or vertical mounting and is intended for applications using a spring-loaded check valve to help limit reverse flow.

Key Features:

• Valve type: Spring-loaded Y-check valve with true union design
• Size: 1 in. nominal valve size with 1 in. FNPT x FNPT threaded connections
• Body and mechanism material: PVC body with PVC piston check mechanism
• Seal and seat material: FPM seal and seat
• Spring material: Stainless steel
• Cracking pressure: Adjustable from 2 to 15 psi
• Flow capacity: 9 gpm with Cv of 9
• Pressure rating: 150 psi at 70 degrees F maximum water pressure
• Temperature range: 40 to 140 degrees F
• Mounting orientation: Horizontal or vertical
• Standards: ASTM D1784
