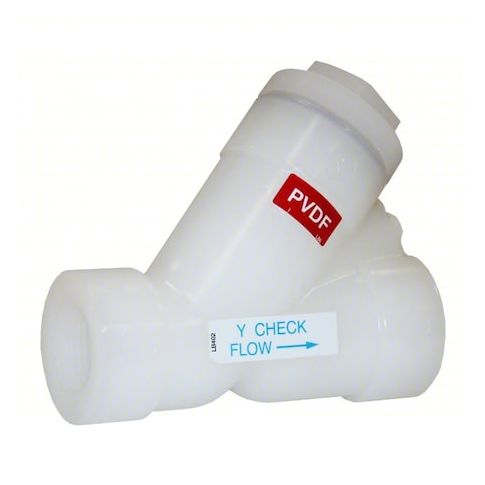

Piston Check Valve, YC Series, Y-Style, 3/4 in FNPT Socket x 3/4 in FNPT Socket, PVDF MPN:YC50075S

• The HAYWARD FLOW CONTROL YC50075S is a 3/4 in piston check valve with a Y-style body for one-way flow control in corrosive chemical systems. It uses a 316 stainless steel piston check mechanism that opens with forward flow and closes when flow stops or reverses. The PVDF body, FKM seal, and horizontal mounting design are specified with a maximum operating pressure of 150 psi and an operating temperature range of 10 Degrees F to 300 Degrees F.

  Key Features:

  • Valve type: Piston check valve with 2-way flow path for automatic reverse-flow checking.
  • Body style: Y-style configuration.
  • Body material: PVDF.
  • Check mechanism: 316 stainless steel piston.
  • Seal material: FKM.
  • Connections: 3/4 in female socket on both side 1 and side 2.
  • Flow capacity: Cv 3.
  • Pressure rating: Maximum operating pressure 150 psi.
  • Temperature range: 10 Degrees F minimum to 300 Degrees F maximum.
  • Media compatibility: For use with compatible corrosive chemicals.
  • Mounting orientation: Horizontal.
  • Dimensions: 2 7/8 in cap-to-inlet center height
  • 1 3/16 in hex size.
  • Standards: ASTM D1784.
