Swing Check Valve, WCV Series, Inline, Wafer Connection, 10 in, CPVC Body MPN:WCV21000E
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water circulation, and pressure relief. Its durable design ensures smooth operation and prevents backflow, protecting equipment and preventing damage. This check valve is ideal for use in commercial and residential settings, offering peace of mind for pool and spa owners. With its compact size and lightweight construction, it's easy to install and maintain, making it a convenient addition to any water circulation system. Its long-lasting performance ensures consistent and reliable operation.
Top product features:
- This valve allows fluid to flow in one direction and prevents backflow.
- It is designed to be used in a variety of applications including pools and plumbing systems.
- It has a compact design that fits in tight spaces.
Top product applications:
- Pool plumbing systems
- Water treatment systems
- Hydraulic systems

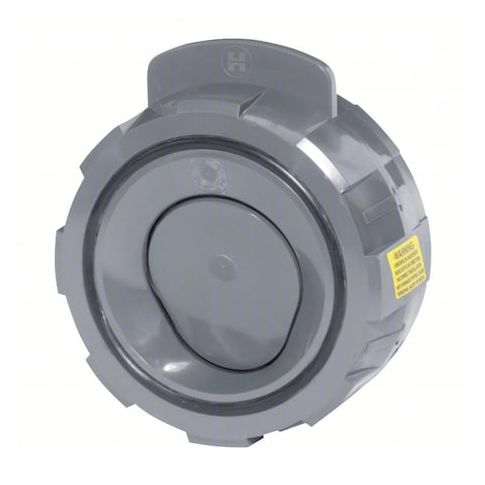

The HAYWARD FLOW CONTROL WCV21000E is a 10 in. inline swing check valve with wafer connections on both sides. It features a CPVC body, a 316 stainless steel swing mechanism, and an EPDM seal. The valve is configured to allow one-way flow and is configured to close upon reverse flow and intended for backflow control in piping systems handling corrosive chemicals. It has a maximum operating pressure of 150 psi, is rated for operation from 34 to 140 Degrees F, and may be mounted horizontally or vertically.
Key Features:
- Swing check mechanism: Hinged swing design for one-way flow control.
- Body material: CPVC.
- Check mechanism material: 316 stainless steel.
- Seal material: EPDM.
- Connection size: 10 in. on side 1 and side 2.
- Connection type: Wafer on both sides.
- Valve body style: Inline.
- Valve ways: 2-way.
- For media: Corrosive chemicals.
- Maximum operating pressure: 150 psi.
- Operating temperature range: 34 to 140 Degrees F.
- Mounting orientation: Horizontal, vertical.
- Cv: 2,249.
- Check type: Standard.
- Includes counterweight: No.
- Standards: ANSI 150, ASTM D1784.
- Valve series: WCV.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 8.00
- Package Height: 4.00
- Package Weight: 1.00
