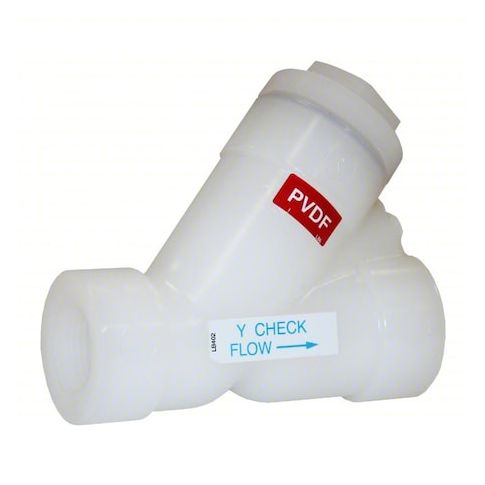

Piston Check Valve, YC Series, Y-Style, 1/2 in, Socket x Socket, Female, PVDF MPN:YC50050S
Free Shipping
In Stock
The Hayward Check Valve is a reliable solution for ensuring one-way fluid flow in various applications. Its compact design and durable construction make it ideal for use in pool and spa systems, as well as industrial and commercial settings. By preventing backflow and siphoning, the check valve helps maintain water quality, reduces the risk of contamination, and prolongs equipment lifespan. Its ease of installation and maintenance also make it a convenient choice for professionals and DIY enthusiasts alike, making it a valuable addition to any fluid handling system.
Top product features:
- Allows fluid to flow in one direction, preventing backflow and ensuring proper system operation.
- Has a compact design, minimizing space requirements in tight installations.
- Prevents fluid from reversing direction, reducing the risk of damage to surrounding components.
Top product applications:
- Pool plumbing systems
- Well systems
- Pump systems
The HAYWARD FLOW CONTROL YC50050S is a 1/2 in piston check valve with a Y-style body for one-way flow control in chemical service applications compatible with PVDF, 316 stainless steel, and FKM materials. It uses a 316 stainless steel piston check mechanism that opens with forward flow and closes when flow stops or reverses. The PVDF body and FKM seal are specified materials for compatible chemical service applications. The valve has a maximum operating pressure of 150 psi and an operating temperature range of 10 to 300 degrees F.
Key Features:
- 1/2 in piston check valve with Y-style, 2-way body design
- Guided piston check mechanism is configured for automatic backflow control
- PVDF body with 316 stainless steel check mechanism and FKM seal
- 1/2 in female socket connections on both sides
- Cv rating of 0.8
- Maximum operating pressure: 150 psi
- Operating temperature range: 10 to 300 degrees F
- Horizontal mounting orientation
- 2 1/4 in cap-to-inlet center height
- 1 in hex size
- ASTM D1784
- Silent Check specification: Standard
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 8.00
- Package Weight: 0.29
