Ball Check Valve, TC Series, Inline, 1 1/2 in Flange x 1 1/2 in Flange, PVC MPN:TC10150FE
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G714385636
Ball Check Valve, TC Series, Inline, 1 1/2 in Flange x 1 1/2 in Flange, PVC

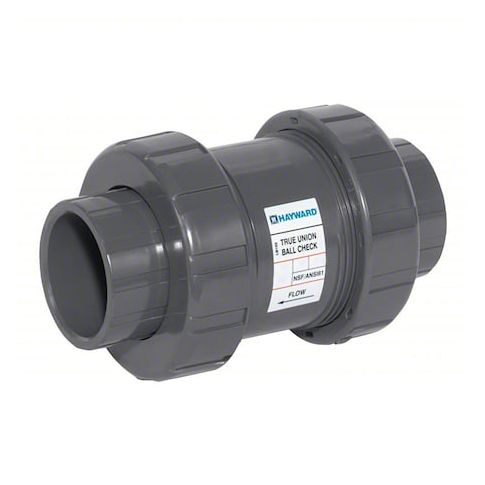

HAYWARD FLOW CONTROL TC10150FE is an inline 2-way ball check valve with a PVC body and EPDM seal and seat materials. It uses a free-moving ball check mechanism intended to permit flow in one direction and restrict reverse flow. This valve is specified for liquid handling systems and process lines using compatible corrosive chemical media. It has 1-1/2 in flange connections on both sides and can be mounted in horizontal or vertical orientations.
Key Features:
- Ball check mechanism is intended to restrict reverse flow.
- PVC body with EPDM seal and seat materials.
- Connection size: 1-1/2 in on side 1 and side 2.
- Connection type: flange on both ends.
- Cracking pressure: 1.5 psi.
- Coefficient of volume (Cv): 45.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- For media: compatible corrosive chemicals.
- Mounting orientation: horizontal or vertical.
- NSF 61.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
- Overall height: 7 1/16 in.
- Valve series: TC.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 3.90
Product info last updated on April 10, 2026 9:37pm UTC
Category: Pipes, Valves and Fittings
