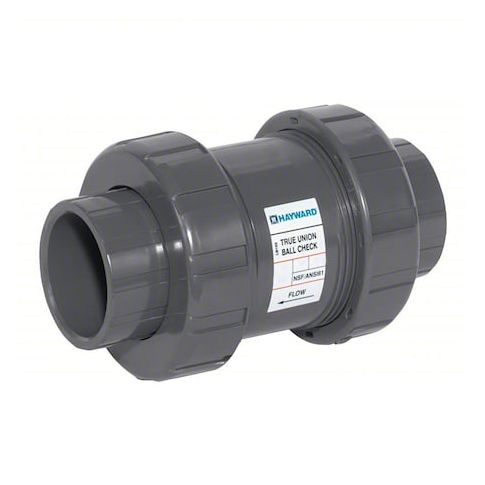

Ball Check Valve, TC Series, Inline, 1 1/4 in, Flanged, PVC, EPDM Seal MPN:TC10125FE
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment, and industrial processes. Its durable design ensures smooth flow and prevents backflow, reducing wear and tear on equipment. The valve is easy to install and maintain, making it a great choice for DIY projects or professional installations. Its compact size and lightweight design make it ideal for use in tight spaces. With its long-lasting performance and versatility, the Hayward Check Valve is a valuable addition to any system, providing peace of mind and optimal functionality.
Top product features:
- Check Valve allows fluid to flow in one direction.
- Check Valve prevents backflow of fluid.
- Check Valve is designed for use in applications where fluid flow must be controlled.
Top product applications:
- Pool Plumbing
- Well Pump System
- Hydrotherapy Equipment
HAYWARD FLOW CONTROL TC10125FE is an inline ball check valve for one-way flow control in liquid handling and process lines. It uses a ball check mechanism and is configured for flow in one direction and reverse-flow checking. The valve has a PVC body with EPDM seal and seat materials, 1-1/4 in flange connections on both sides, and mounting orientation: horizontal or vertical.
Key Features:
- Valve type: Ball check valve with inline body style and 2-way flow path.
- Body material: PVC.
- Check mechanism: Ball.
- Connection size: 1-1/4 in on side 1 and side 2.
- Connection type: Flange on side 1 and side 2.
- Cracking pressure: 1.5 psi.
- Flow capacity: Cv 25.
- Maximum operating pressure: 235 psi.
- Operating temperature range: 34 degrees F to 70 degrees F.
- Listed media compatibility: Corrosive chemicals.
- Seal material: EPDM.
- Seat material: EPDM.
- Mounting orientation: Horizontal or vertical.
- NSF certification: NSF 61.
- Standards: ANSI 372, ANSI 61, ASTM D1784, ASTM D4101.
- Overall height: 6 15/16 in.
- Valve series: TC.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 7.50
- Package Height: 6.00
- Package Weight: 3.33
