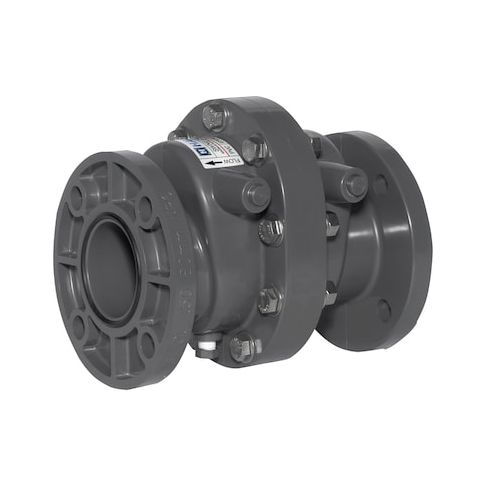

Swing Check Valve, SW Series, 3 in, Flanged, Inline, CPVC Body MPN:SW2300V
The Hayward CPVC Swing Check Valve is a reliable and efficient solution for water flow management in various applications. This valve is designed for use in horizontal or vertical orientations, making it suitable for a wide range of plumbing systems. Its CPVC body and FPM seal ensure durability and resistance to corrosion, while its 150 psi pressure rating provides peace of mind. Ideal for use in residential and commercial settings, this valve is perfect for applications such as pool and spa systems, water treatment facilities, and industrial processes where precise flow control is necessary.
Top product features:
- Swing mechanism allows for easy installation and maintenance
- CPVC body provides chemical resistance and durability
- FPM seals ensure a tight shut-off and prevent leaks
Top product applications:
- Pool and spa systems
- Water treatment plants
- Industrial water supply systems
HAYWARD FLOW CONTROL SW2300V is a 3 in. CPVC swing check valve with a flanged inline body for one-way flow control in water systems. Its swing check mechanism opens with forward flow and closes under reverse-flow conditions. The valve body and check mechanism are constructed of CPVC and include an EPDM seat and FKM seal. It can be mounted horizontally or vertically and is listed as full flow, with a 150 gpm flow rating and Cv of 80.
Key Features:
- 3 in. CPVC swing check valve for one-way flow control
- Inline body with flanged connections on both sides
- ANSI flange class: Class 150
- Cracking pressure: 3 psi
- Flow rating: 150 gpm
- Cv: 80
- Full flow: Yes
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 180 degrees F
- Seat material: EPDM
- Seal material: FKM
- Mounting orientation: Horizontal or vertical
- Standards: ASTM D1784
- Overall length: 10.24 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.37
- Package Width: 9.06
- Package Height: 11.50
- Package Weight: 12.14
