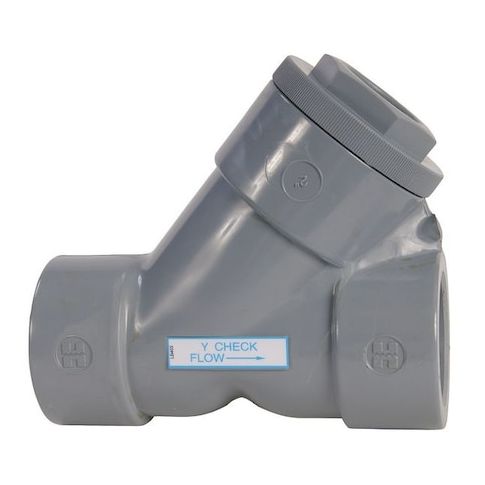

Y-Check Valve, 1", CPVC/EPDM, Flanged MPN:YC20100FE

• HAYWARD FLOW CONTROL YC20100FE is a 1 in. Y-check valve with a CPVC body, CPVC piston check mechanism, and EPDM seal and seat materials. This valve for compatible water service applications is specified for water service and for one-direction flow applications in compatible piping systems. The valve has a Y-style body configuration and can be mounted horizontally or vertically.

  Key Features:

  • Valve type: Y-check valve with single-flow design
  • Size: 1 in. nominal valve size with 1 in. flanged connections on both ends
  • Connection rating: ANSI Class 150 flange
  • Materials: CPVC body and check mechanism
  • EPDM seal and seat
  • Check mechanism: Piston
  • Cracking pressure: 1.0 psi
  • Flow capacity: Cv 9
  • rated flow 9 gpm
  • Pressure rating: 150 psi maximum water pressure at 70 degrees F
  • 150 psi maximum operating pressure
  • Temperature range: 34 degrees F minimum operating temperature to 190 degrees F maximum operating temperature
  • Body style: Y-style
  • full flow: Yes
  • Mounting orientation: Horizontal, vertical
  • Standards: ASTM D1784
  • Dimensions: 8.97 in. overall length, 4 5/8 in. overall height, 2 in. width
