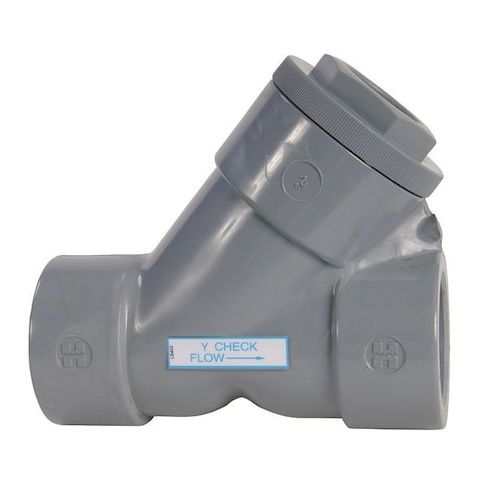

Y-Check Valve, 2", CPVC/EPDM, Threaded MPN:YC20200TE
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and efficient solution for various applications, including pool and spa systems, water treatment, and irrigation systems. Its Y-design allows for smooth flow and easy installation, while its CPVC and EPDM materials ensure durability and resistance to corrosion and chemicals. With a maximum water pressure of 150 psi and a flow rate of 65 gpm, this valve can handle high-pressure systems with ease. Suitable for horizontal and vertical mounting, it's ideal for use in harsh environments and can withstand temperatures from 40°F to 190°F, making it a versatile and long-lasting choice.
Top product features:
- Check Valve Design allows for unidirectional flow
- EPDM Seal Material provides resistance to chemical corrosion and abrasion
- Flow Rate of 65 gpm enables efficient water circulation
Top product applications:
- Pool water circulation systems
- Water treatment systems
- Hydronic heating systems
HAYWARD FLOW CONTROL YC20200TE is a 2 in. Y-check valve with a CPVC body and EPDM seat and seal materials. This one-way valve is intended for water service in general purpose piping systems with a piston check mechanism for one-direction flow applications and backflow resistance. Its Y-style body supports horizontal or vertical mounting.
Key Features:
- 2 in. valve size with FNPT x FNPT threaded connections
- CPVC body and check mechanism
- EPDM seal and seat materials
- Y-style body with single-flow design and piston check mechanism
- Media: water
- Cracking pressure: 1.0 psi
- Flow capacity: 65 gpm
- Cv: 65
- Full flow design
- Maximum water pressure: 150 psi at 70 degrees F
- Operating temperature range: 34 degrees F to 190 degrees F
- Mounting orientation: horizontal or vertical
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 5.00
- Package Height: 8.00
- Package Weight: 3.90
