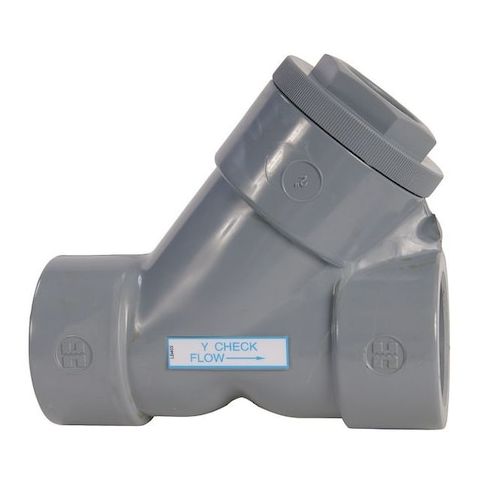

Y-Check Valve, 1-1/2", CPVC/EPDM, Threaded MPN:YC20150TE
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and efficient solution for various applications, including residential and commercial plumbing systems. Its CPVC and EPDM construction ensures durability and resistance to corrosion, while its threaded connection makes installation easy. With a flow rate of 45 gpm, this valve is suitable for a range of uses, from garden hose connections to pool and spa installations. Its horizontal and vertical mounting orientation allows for flexible installation, and its 1 psi cracking pressure ensures safe operation. Ideal for applications where backflow prevention is necessary, this valve provides peace of mind and reliable performance.
Top product features:
- Flow Design Single
- Mechanism and Body Design Y
- EPDM seal material for temperature range of 40-190 Degrees F
Top product applications:
- Pool equipment
- Water treatment systems
- Hydronic heating systems
HAYWARD FLOW CONTROL YC20150TE is a 1-1/2 in Y-check valve with a CPVC body, CPVC piston check mechanism, and EPDM seat and seal materials. It is for use in compatible piping systems requiring one-way flow control. The Y-style body and FNPT x FNPT threaded connections support horizontal or vertical mounting.
Key Features:
- Valve type: Y-check valve
- Size: 1-1/2 in nominal valve size with 1-1/2 in female NPT connections on both ends
- Body and mechanism material: CPVC body with CPVC piston check mechanism
- Seat and seal material: EPDM
- Flow capacity: 45 gpm
- Cv 45
- Cracking pressure: 1 psi
- Pressure rating: 150 psi at 70 degrees F
- Temperature range: 40 degrees F to 190 degrees F
- Full flow: Yes
- Mounting orientation: Horizontal or vertical
- Standards: ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 8.00
- Package Weight: 1.94
