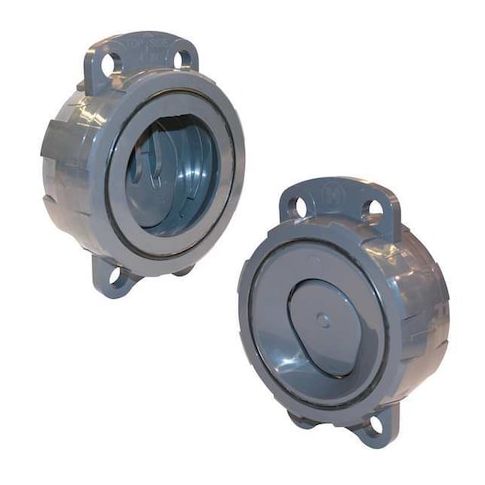

Check Valve, WCV Series, Wafer, 4 in, Flange x Flange, Swing, CPVC MPN:WCV2400E

• HAYWARD FLOW CONTROL WCV2400E is a 4 in wafer check valve for process piping applications. It uses a swing check mechanism in an inline wafer body and is configured for single-direction water flow in compatible piping systems. The CPVC body and check mechanism with EPDM seal and seat materials are specified for water media, and the wafer-style design installs between flanged connections.

  Key Features:

  • 4 in nominal valve size with 4 in connections on both sides
  • Wafer, flange x flange connection configuration
  • ANSI Flange Class 150
  • CPVC body and CPVC check mechanism
  • Swing check mechanism with single-flow design
  • Media: water
  • Cracking pressure: 1.0 psi
  • Flow rate: 315 gpm
  • Cv: 346
  • Full-flow design
  • Maximum water pressure: 150 psi at 70 degrees F
  • Operating temperature range: 40 degrees F to 190 degrees F
  • Mounting orientation: horizontal or vertical
  • Overall length: 2.91 in
  • Standards: ASTM D1784, ISO 9001
