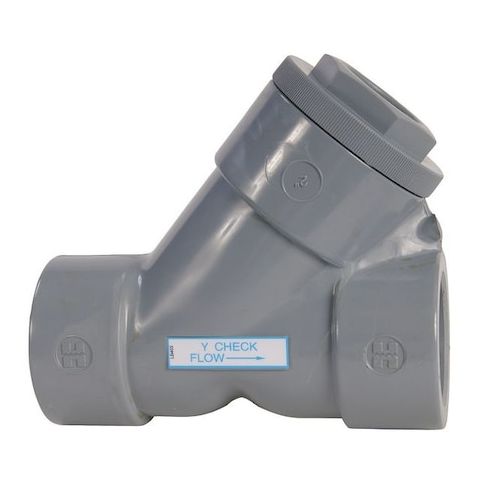

Y-Check Valve, 1/2", PVC/EPDM, Socket MPN:YC10050SE
Free Shipping
In Stock
The Hayward Y-Check Valve is a reliable and efficient check valve designed for a wide range of applications. Suitable for use in both horizontal and vertical positions, this valve ensures one-way flow and prevents backflow, protecting your plumbing system from damage and contamination. Made with durable PVC and EPDM materials, it can withstand temperatures between 40°F and 140°F and pressures up to 150 psi. Ideal for use in residential and commercial water supply systems, pools, and spas, this valve provides a secure and leak-free connection, making it a must-have for any plumbing or irrigation project.
Top product features:
- Flow Design Single allows for unidirectional flow control.
- Y-Body Design provides a compact and space-efficient configuration.
- EPDM seal material ensures a durable and chemical-resistant closure.
Top product applications:
- Pool and spa systems for backwashing and draining
- Drinking water treatment and filtration systems
- Industrial process control and piping systems
HAYWARD FLOW CONTROL YC10050SE is a 1/2 in. Y-check valve with a PVC body, PVC piston check mechanism, and EPDM seal and seat materials. This valve for water service applications is configured for one-direction flow in piping systems. The Y-style body provides access for inspection and maintenance, and the valve can be mounted horizontally or vertically.
Key Features:
- 1/2 in. Y-check valve with piston check mechanism
- Socket x socket connections with female ends on both sides
- PVC body and PVC check mechanism
- EPDM seal and seat materials
- Cracking pressure: 1.0 psi
- Flow rate: 0.8 gpm
- Cv: 0.8
- Full flow: Yes
- Pressure rating: 150 psi at 70 Degrees F
- Operating temperature range: 34 Degrees F to 140 Degrees F
- Mounting orientation: horizontal or vertical
- Meets ASTM D1784
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 0.29
