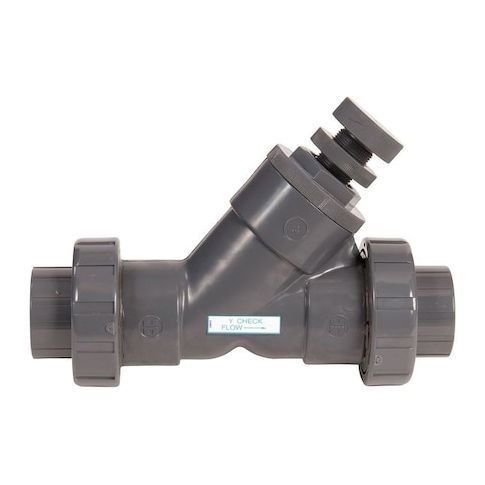

Y-Check Valve, True Union, Spring-Loaded, 1/2", PVC/EPDM, Threaded, Adjustable 2-15 psi MPN:SLC10050TEU

• HAYWARD FLOW CONTROL SLC10050TEU is a 1/2 in. spring-loaded Y-check valve with a true union PVC body and FNPT x FNPT threaded connections. It is intended for water service applications within the listed pressure and temperature specifications. The valve is configured for one-direction flow with a piston check mechanism for reverse-flow control. Its Y-style body supports horizontal or vertical mounting, and the adjustable cracking pressure can be set from 2 to 15 psi.

  Key Features:

  • Valve type: Spring-loaded Y-check valve with true union design
  • Size: 1/2 in. nominal valve size
  • Connection type: Female NPT x Female NPT threaded ends
  • Body material: PVC
  • Check mechanism: Piston with PVC check mechanism material
  • Seal and seat material: EPDM
  • Spring material: Stainless steel
  • Cracking pressure: Adjustable from 2 to 15 psi
  • Flow capacity: Cv 0.8
  • Pressure rating: 150 psi maximum water pressure at 70 degrees F
  • 150 psi maximum operating pressure
  • Temperature range: 40 degrees F to 140 degrees F
  • Mounting orientation: Horizontal or vertical
  • Standards: ASTM D1784
