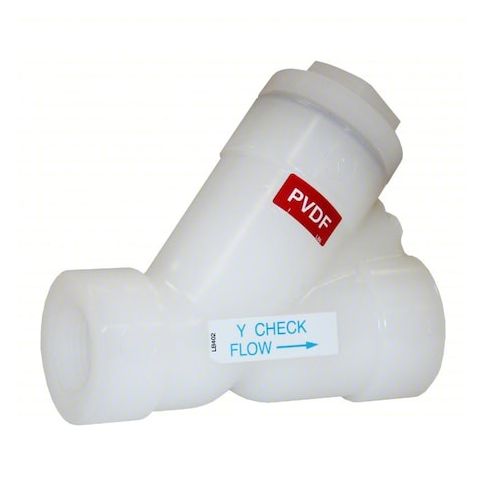

Piston Check Valve, YC Series, Y-Style, 1/2 in FNPT, PVDF Body MPN:YC50050T
Free Shipping
In Stock
The Hayward Check Valve is a reliable and efficient component designed for various applications in plumbing and HVAC systems. Its ability to prevent backflow and ensure one-way fluid movement makes it an essential element in preventing water damage and contamination. Suitable for use in residential and commercial settings, this check valve is ideal for installations where a secure and leak-free flow is critical. Its compact design and ease of installation make it a popular choice among professionals and DIY enthusiasts alike, providing peace of mind and worry-free operation.
Top product features:
- It allows fluid to flow in one direction while preventing backflow.
- It is designed for use in applications where fluid control is necessary.
- It has a compact design with a small footprint.
Top product applications:
- Pool Equipment
- Water Treatment Systems
- Industrial Piping Systems
HAYWARD FLOW CONTROL YC50050T is a 1/2 in. piston check valve with a Y-style PVDF body and female NPT connections on both ends. It is configured as a piston check valve for one-direction flow applications. Specified with a PVDF body and FKM seal material for compatible media applications, it is for use with compatible liquid or gas systems within the specified pressure and temperature ratings.
Key Features:
- 1/2 in. piston check valve.
- Y-style PVDF body with FKM seal material.
- 316 stainless steel internal components.
- 1/2 in. female NPT connection on both ends.
- Cv: 0.8.
- Maximum operating pressure: 150 psi.
- Operating temperature range: 10 Degrees F to 300 Degrees F.
- Mounting orientation: horizontal.
- Hex size: 1 in.
- Height, cap to inlet center: 2 1/4 in.
- Standards: ASTM D1784.
- Silent check: standard.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 8.00
- Package Weight: 0.32
